Product Description

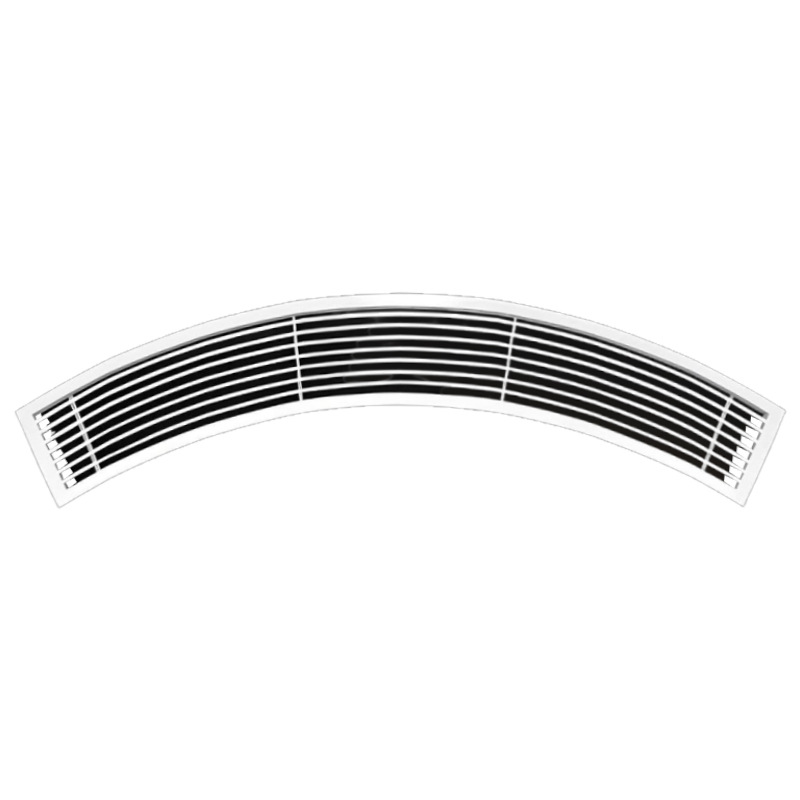

The Curved Bar Grille is an architectural supply air grille designed with a curved face profile for modern HVAC air distribution systems. Compared with standard flat linear bar grilles, it offers a softer visual appearance and enhanced architectural styling while maintaining efficient airflow performance.

It is widely used in ceilings, side walls, bulkheads, and specially designed interior spaces where both air distribution and decorative appearance are important.

Key Features

• Curved face design for enhanced architectural appearance
• Suitable for supply air applications
• Smooth and even airflow distribution
• Durable aluminum construction
• Available in fixed bar or customized bar configurations
• Suitable for ceiling or wall installation
• Corrosion-resistant and lightweight
• Custom sizes, radiuses, and finishes available

Structure

• Frame: Extruded aluminum frame
• Face Design: Curved face / arc-shaped front profile
• Bars: Linear bar blades
• Mounting: Ceiling mounted or wall mounted
• Application: Supply air distribution
• Finish: Powder coated, anodized, or customized

Applications

• HVAC supply air systems
• Architectural ventilation projects
• Commercial interiors
• Hotels
• Shopping malls
• Office buildings
• Showrooms
• Decorative ceiling or wall air outlets

Technical Specifications

• Material: Extruded aluminum
• Type: Curved face bar grille
• Airflow Function: Supply air
• Installation: Ceiling / wall mounted
• Length: Standard and customized
• Face Radius: Customized according to project requirement
• Finish: White powder coating, anodized, or custom RAL colors
• Optional Accessories: Opposed blade damper, plenum box, fixing clips
