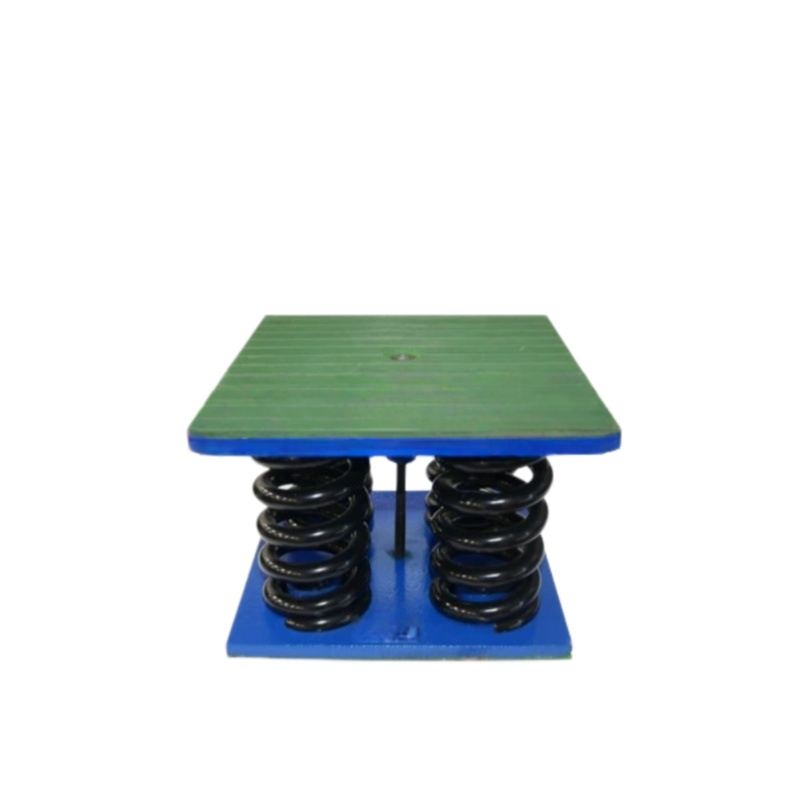

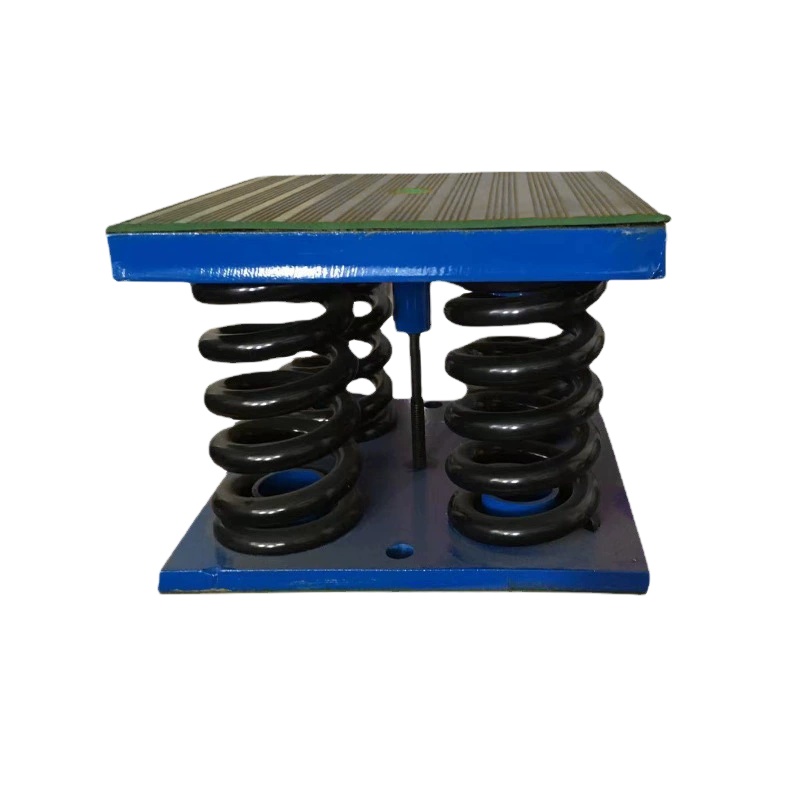

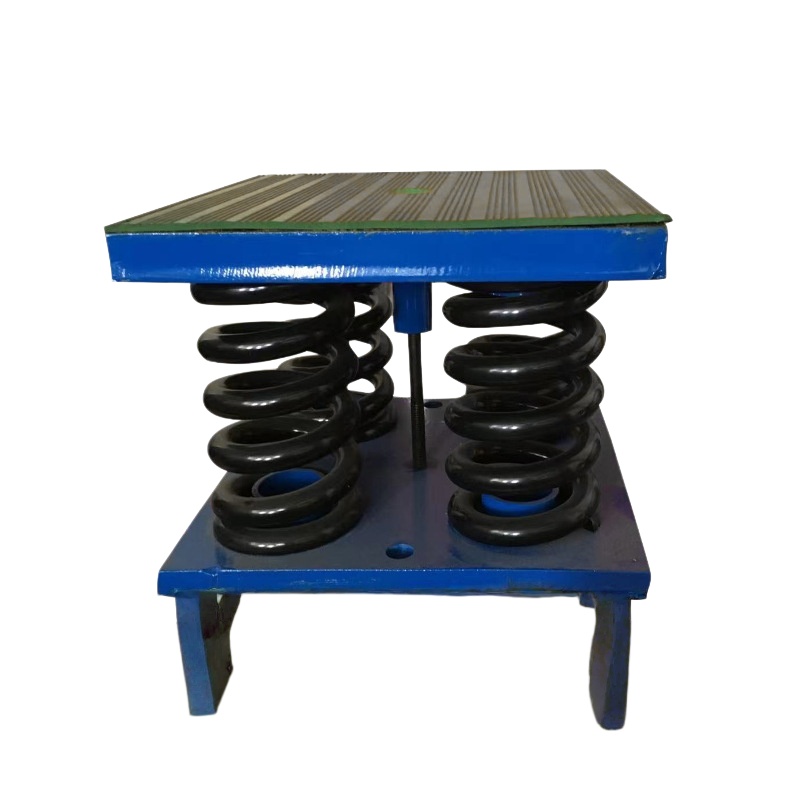

DFG Type Damping Spring Vibration Isolator

Product Description

The DFG Type Damping Spring Vibration Isolator is a high-performance vibration reduction solution designed for HVAC fans, water pumps, generator sets, and other industrial mechanical equipment. It is a modern design based on the latest domestic and international air-conditioning vibration isolator technology.

Constructed with alloy steel springs, upper and lower steel plates, rubber damping pads, and base anti-slip components, the DFG isolator combines high vibration reduction efficiency with a simple and durable structure. Its design ensures stable performance, easy installation, and effective reduction of transmitted vibration and noise.

Engineered with optimized spring properties, the DFG isolator provides reliable operational safety and load support, meeting rigorous mechanical performance standards.

Key Features

• High vibration reduction efficiency for industrial equipment
• Durable alloy steel spring construction with upper/lower steel plates
• Rubber damping pads to reduce noise and vibration transmission
• Stable and simple structure for easy installation and maintenance
• Optimized spring design ensures operational safety and load capacity
• Suitable for heavy-duty applications, including generators, fans, and pumps
• Reduces structure-borne vibration and mechanical shock

Applications

• HVAC fans and blowers
• Water pumps and chillers
• Generator sets
• Industrial mechanical equipment
• Commercial air handling units (AHU)
• Mechanical systems requiring vibration isolation

Technical Specifications

• Model: DFG Series
• Type: Damping spring vibration isolator
• Structure: Alloy steel springs + upper/lower steel plates + rubber damping pads
• Rated Load Range: 100–2944 N (depending on model)
• Spring Stiffness: 9–315 N/mm (depending on model)
• Installation Type: Base-mounted / seat-type
• Applications: Fans, pumps, generator sets, industrial HVAC units
• Customization: Multiple sizes and load ratings available
