Double Deflection Regiser

Product Description

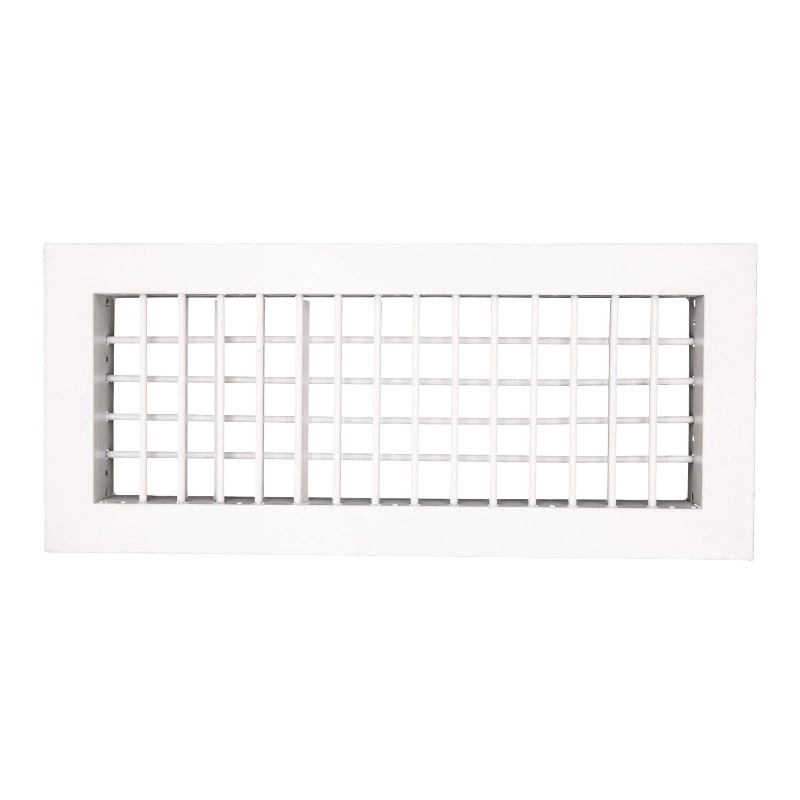

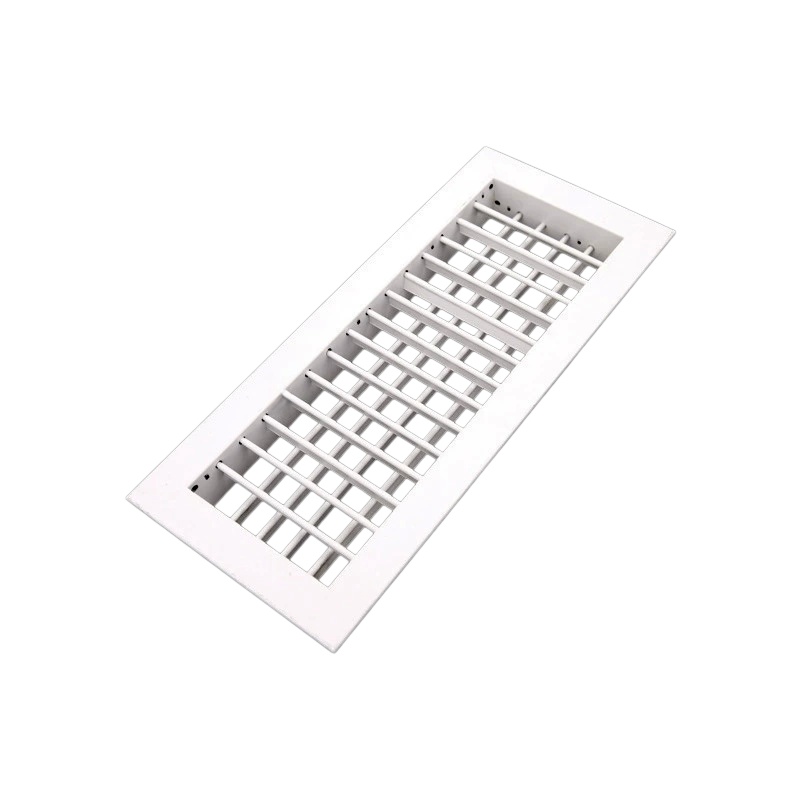

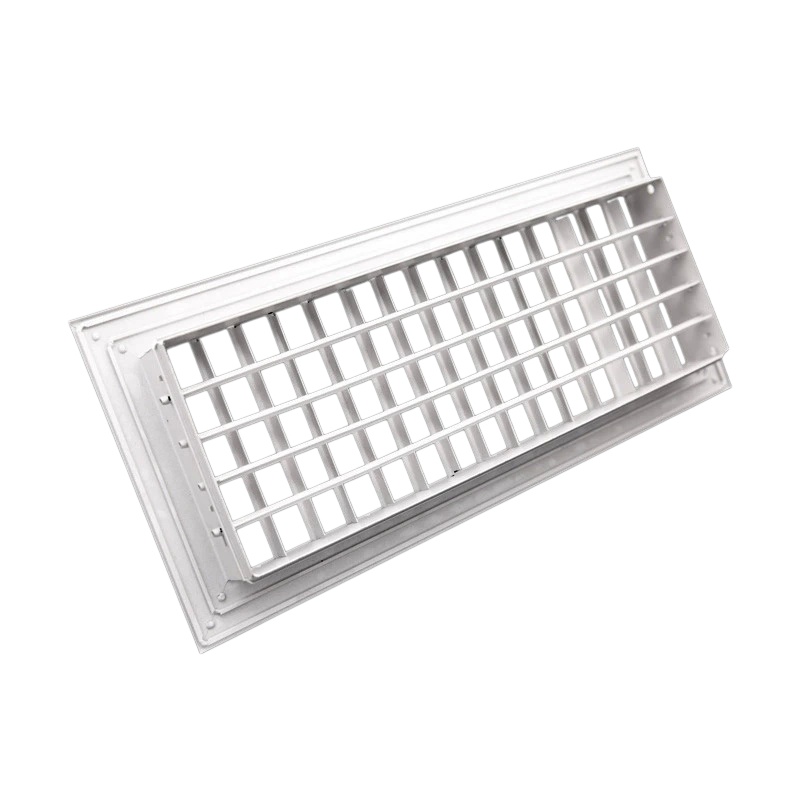

The Double Deflection Register is a supply air terminal designed for HVAC air distribution systems. It features two sets of individually adjustable blades, typically arranged horizontally and vertically, allowing precise control of airflow direction in both planes.

This design makes it ideal for sidewall or duct-mounted supply air applications where flexible air pattern adjustment is required. It is widely used in residential, commercial, and industrial ventilation systems.

Key Features

• Double deflection design with two layers of adjustable blades
• Enables horizontal and vertical airflow control
• Suitable for supply air applications
• Durable aluminum construction
• Smooth airflow distribution with adjustable air pattern
• Clean appearance for wall or duct mounting
• Lightweight, corrosion-resistant, and easy to install
• Optional opposed blade damper and fixing clips available

Structure

• Frame: Extruded aluminum frame
• Blades: Two layers of adjustable blades
• Adjustment: Front horizontal and rear vertical blades, or vice versa
• Mounting: Wall mounted, duct mounted, or exposed installation
• Application: Supply air
• Finish: Powder coated, anodized, or customized

Applications

• HVAC supply air systems
• Sidewall air outlets
• Duct-mounted air distribution
• Commercial buildings
• Office buildings
• Hotels
• Retail spaces
• Residential ventilation systems

Technical Specifications

• Material: Extruded aluminum
• Blade Type: Double deflection adjustable blades
• Frame Shape: Rectangular / square
• Installation: Wall mounted / duct mounted
• Finish: White powder coating, anodized, or custom RAL colors
• Size: Standard and custom sizes available
• Optional Accessories: Opposed blade damper, plenum box, fixing clips, foam gasket
