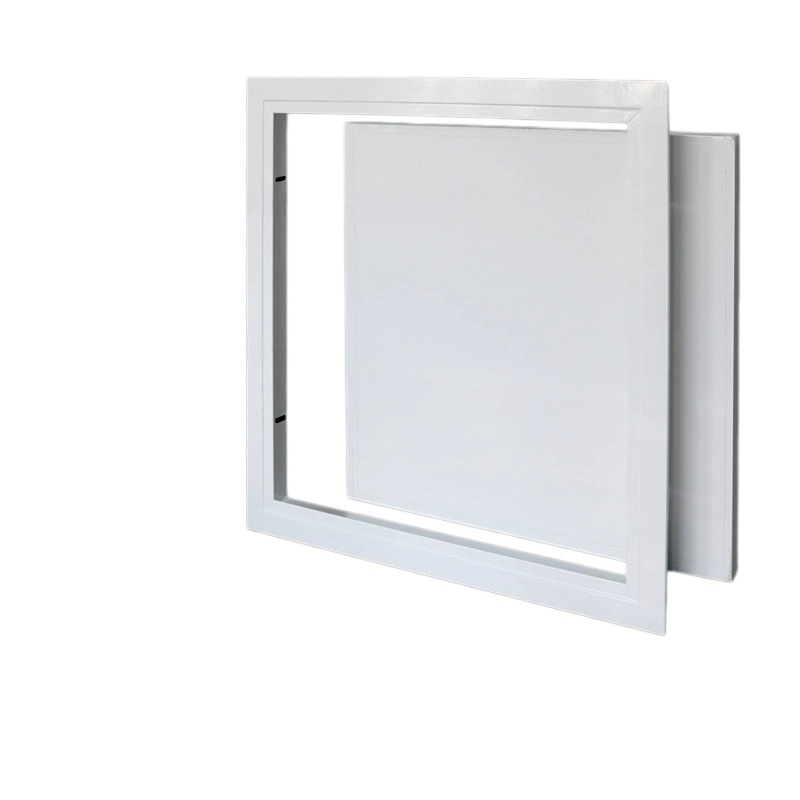

Lay-In Ceiling Access Panel with Aluminum Frame and Galvanized Steel Door

Lay-in ceiling access panel with aluminum frame and galvanized steel inner door, designed for convenient ceiling inspection and maintenance in suspended ceiling systems.

Send Inquiry

Product Description

The Lay-In Ceiling Access Panel is specially designed for ceiling inspection and maintenance applications where there is sufficient space above the ceiling. This type of access panel features a lay-in / drop-in inner door panel supported by a rigid frame structure, allowing easy removal and reinstallation during maintenance work.

Constructed with an aluminum alloy outer frame and a powder-coated galvanized steel inner door, the panel offers a combination of lightweight handling, corrosion resistance, and long-term durability. Its clean and simple appearance makes it suitable for modern interior ceilings in residential, commercial, and light industrial buildings.

This access panel is widely used for concealed maintenance access to HVAC ducts, ceiling voids, electrical wiring, valves, and piping systems.

Key Features

  • Ceiling-Specific DesignSpecially developed for suspended ceiling and gypsum board ceiling applications.
  • Lay-In / Drop-In Door StructureThe inner panel can be easily placed into or removed from the frame for convenient access.
  • Aluminum Frame + Galvanized Steel DoorCombines a lightweight aluminum frame with a durable galvanized steel access panel.
  • Powder-Coated SurfaceSmooth painted finish with good corrosion resistance and long-lasting appearance.
  • Easy InstallationPre-punched screw holes help simplify mounting and installation.
  • Clean Architectural AppearanceFlat and neat surface suitable for modern interior finishing.
  • Customizable Sizes and ColorsStandard sizes are available in stock, with custom dimensions and colors supported.

Applications

  • Suspended ceiling inspection openings
  • Gypsum board ceiling maintenance access
  • HVAC duct inspection and servicing
  • Access to concealed wiring, valves, and piping
  • Residential apartments and villas
  • Offices, hotels, shopping centers, hospitals
  • Commercial and light industrial buildings

Technical Specifications

Parameter Description
Product Name Lay-In Ceiling Access Panel
Type Ceiling Access Panel
Door Style Lay-In / Removable Inner Panel
Frame Material Aluminum Alloy
Door Panel Material Galvanized Steel
Surface Finish Powder Coated
Color Options White / Black / Custom
Installation Position Ceiling Only
Edge Width Approx. 25 mm
Panel Depth / Height Approx. 25 mm
Fixing Method Screw Fixing
Customization Size, color, and packaging available

Standard Sizes

Opening Size (mm) Inner Size (mm) Outer Size (mm)
150 × 150 145 × 145 175 × 175
200 × 200 195 × 195 225 × 225
250 × 250 245 × 245 275 × 275
300 × 300 295 × 295 325 × 325
350 × 350 345 × 345 375 × 375
400 × 400 395 × 395 425 × 425
450 × 450 445 × 445 475 × 475
500 × 500 495 × 495 525 × 525
550 × 550 545 × 545 575 × 575
600 × 600 595 × 595 625 × 625

Custom sizes are available upon request.
