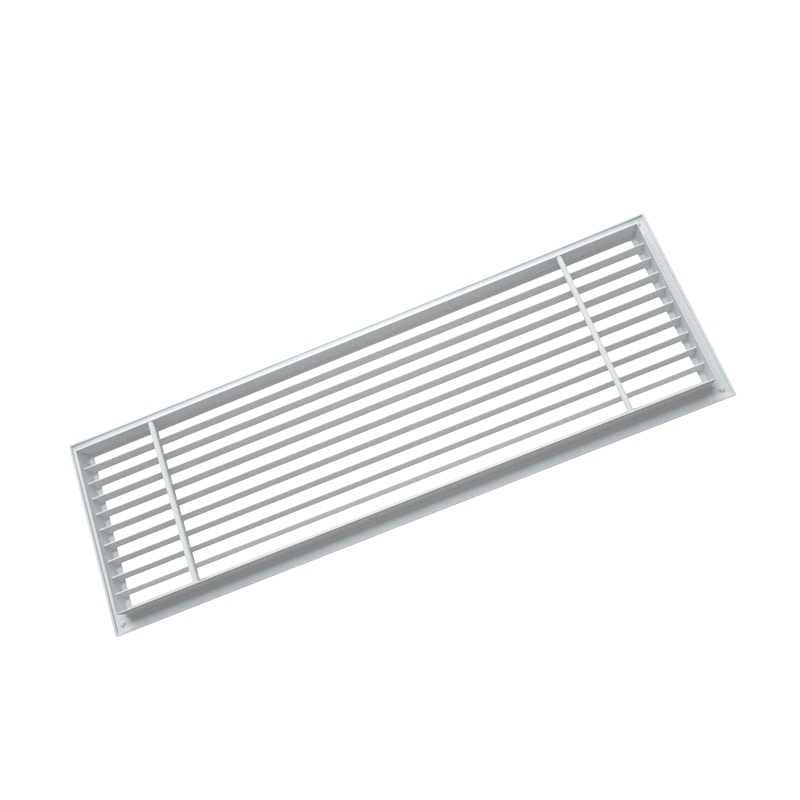

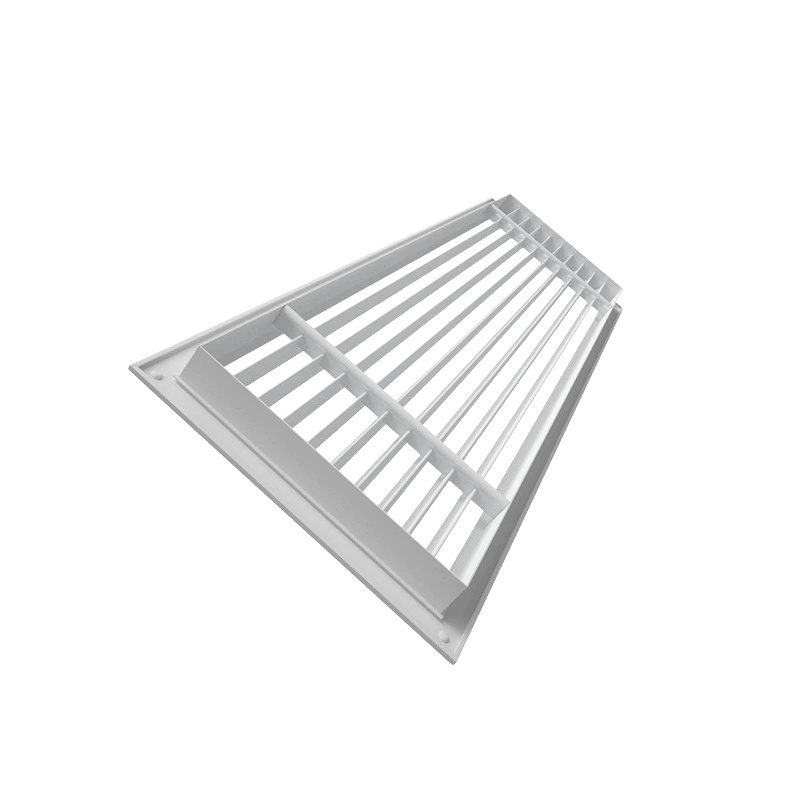

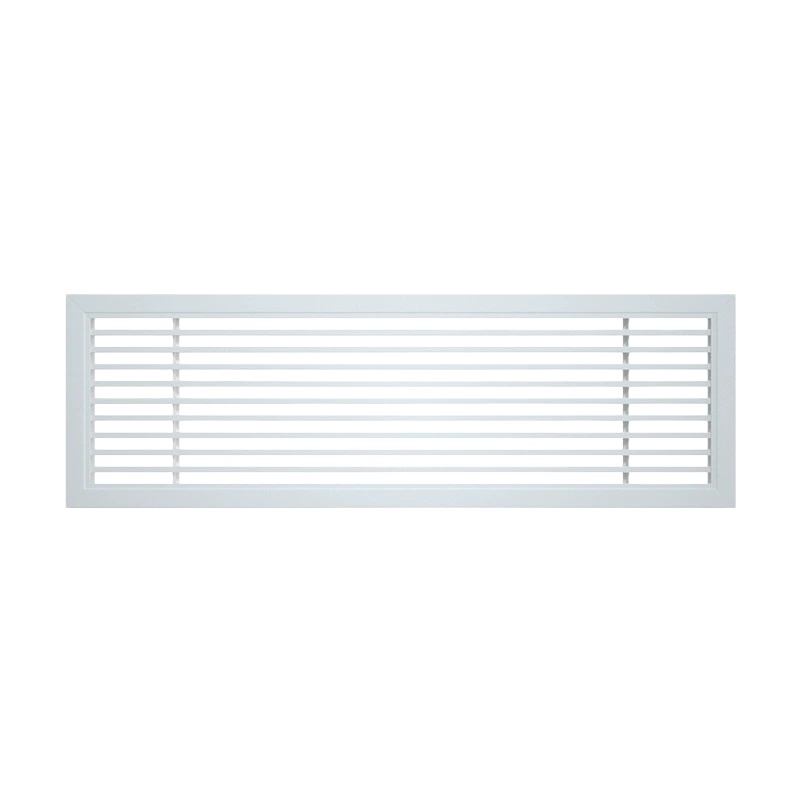

Linear Bar Grille

Product Description

The Linear Bar Grille is an architectural air distribution product designed for supply air, return air, or exhaust air applications in HVAC systems.

With its streamlined linear bar profile and modern appearance, it is widely used in commercial, residential, and public buildings where both airflow performance and interior aesthetics are important.

It can be installed in ceilings, side walls, bulkheads, sills, or floors, and is available in fixed or adjustable bar configurations depending on project requirements.

Key Features

• Modern and elegant linear appearance
• Suitable for supply air, return air, and exhaust air applications
• Available in fixed bar or adjustable bar designs
• High-strength aluminum construction
• Smooth airflow distribution with low noise performance
• Custom lengths and continuous alignment available
• Suitable for ceiling, wall, and floor installation
• Powder coated, anodized, or custom finishes available

Structure

• Frame: Extruded aluminum frame
• Core / Bars: Linear bar blades in fixed or adjustable design
• Mounting: Ceiling, wall, sill, or floor mounted
• Configuration: Single section or continuous length
• Finish: Powder coated / anodized / customized

Applications

• Commercial office buildings
• Hotels
• Shopping malls
• Residential apartments
• Showrooms
• Airports
• Public buildings
• Ceiling air supply systems
• Return air openings
• Perimeter air distribution systems

Technical Specifications

• Material: Extruded aluminum
• Bar Type: Fixed bar / adjustable bar
• Frame Shape: Linear rectangular
• Installation: Ceiling / wall / floor / sill mounted
• Length: Standard and customized lengths available
• Finish: Standard white powder coating, anodized, or custom RAL colors
• Optional Accessories: Opposed blade damper, plenum box, end caps, mitered corners
