Standard Canvas Connector
Flexible Canvas Duct Connector for HVAC Systems
Standard Canvas Connector is designed for flexible connection between fans, air handling units and duct systems in general HVAC applications. It helps reduce vibration transmission, lower operating noise and improve airtight sealing performance in low-temperature ventilation and air-conditioning systems.
Product Overview

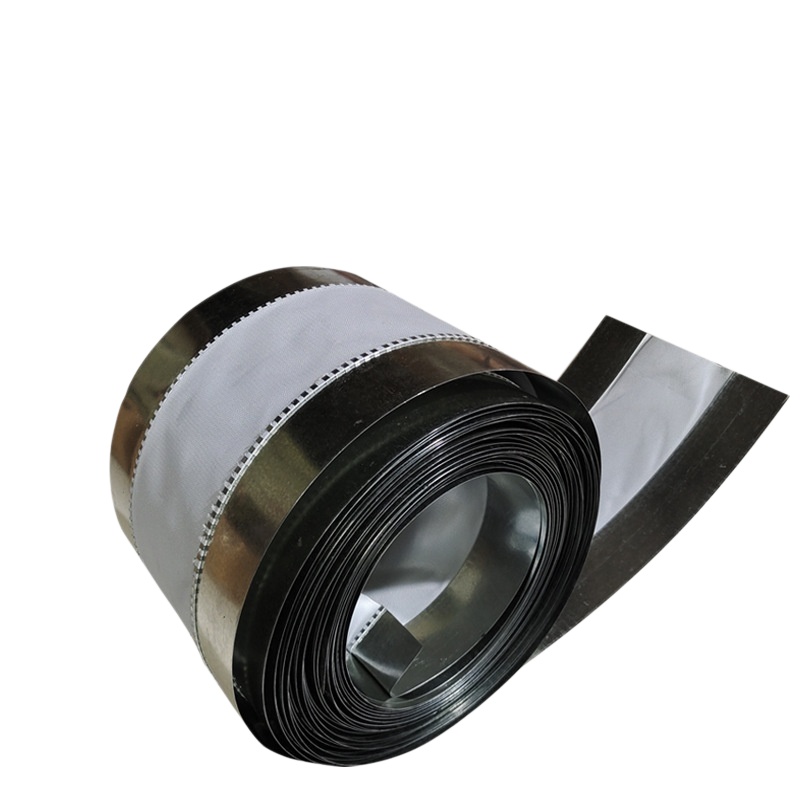

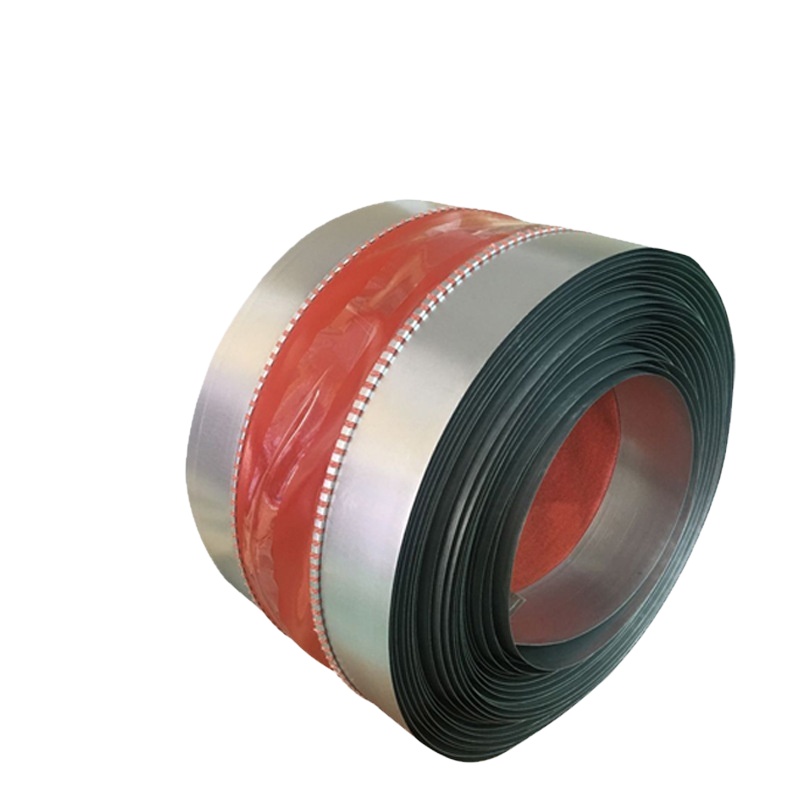

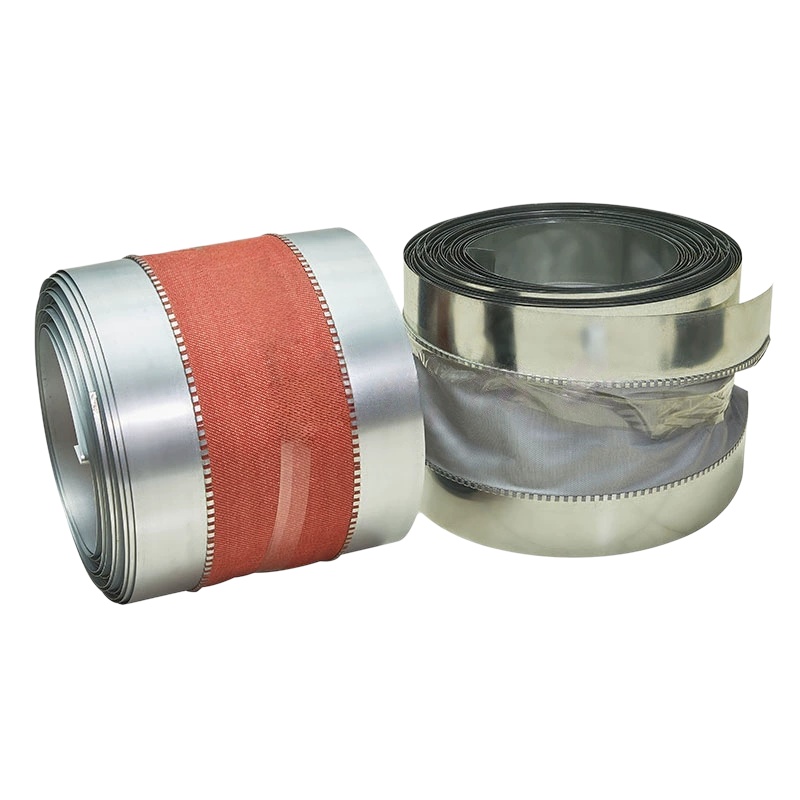

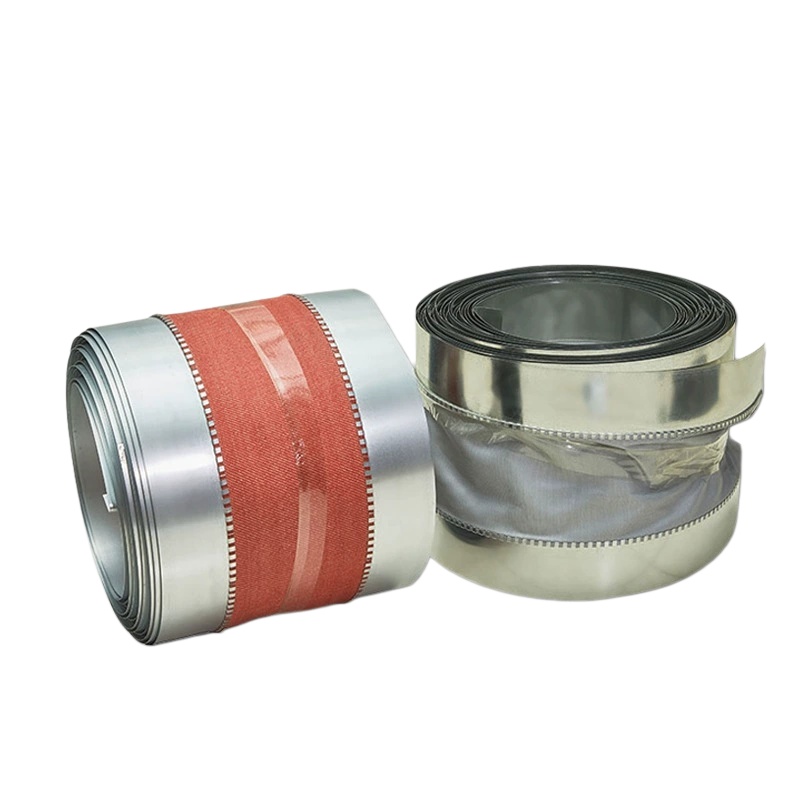

This standard canvas connector is manufactured with galvanized steel strips and fire-retardant canvas fabric, providing a reliable and flexible joint between equipment and ductwork. It is widely used in fresh air systems, air-conditioning ducts, fan coil units and general ventilation installations where vibration isolation and flexible movement are required.
Key Features
- Flexible connection for HVAC duct systems
- Reduces vibration and mechanical noise transfer
- Good air sealing performance
- Fire-retardant canvas material
- Easy to install on rectangular ductwork
- Suitable for general ventilation and air-conditioning use
- OEM and customized sizes available
Applications
- Fresh air systems
- Air-conditioning duct systems
- Fan coil units
- General ventilation fans
- Commercial and residential HVAC systems
Specification
- Metal Edge: Galvanized steel strip
- Fabric:Fire-retardant canvas
- Optional Color: Grey / Red
- Optional Fabric Thickness: 0.4 mm / 0.8 mm / 0.9 mm / 1.0 mm
- Steel Thickness: 0.4 mm
- Steel Width: 45 mm / 75 mm
- Fabric Width: 100 mm / 140 mm
- Working Temperature: Up to 70°C
- Roll Length: 25 m/roll
- Connection Type: TDF / TDC flange type or angle iron flange type
- Color: Grey / Red
- Customization: Available
- Common Sizes: 70 + 140 + 70 mm 70 + 100 + 70 mm 40 + 140 + 40 mm 40 + 100 + 40 mm
- Packaging: Packed in rolls or according to customer requirements
OEM / ODM Service
- Customized width
- Customized fabric material
- Customized color
- Customized flange structure
- Customized packaging and labeling
