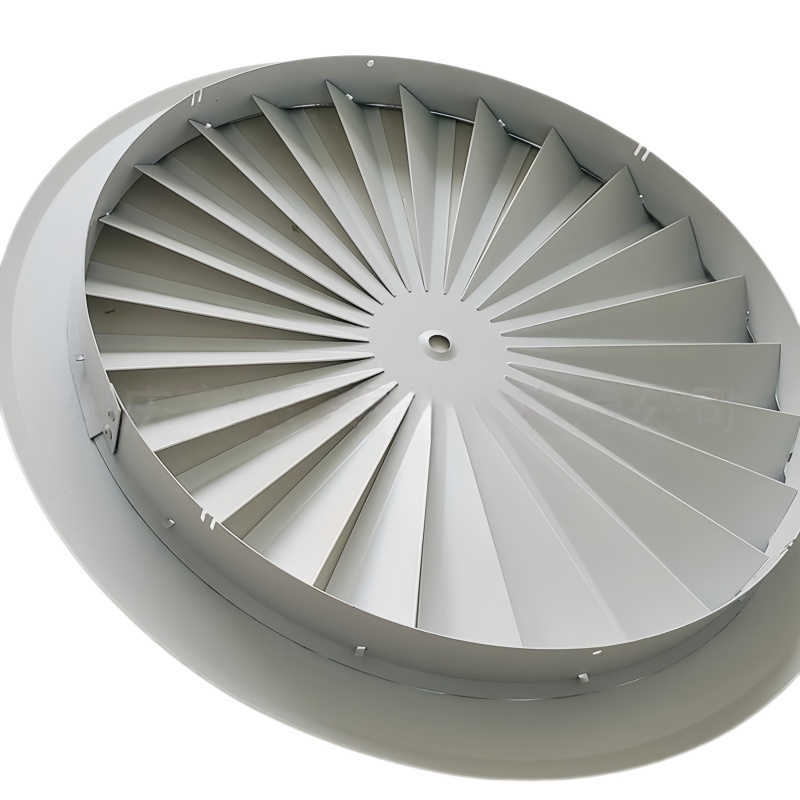

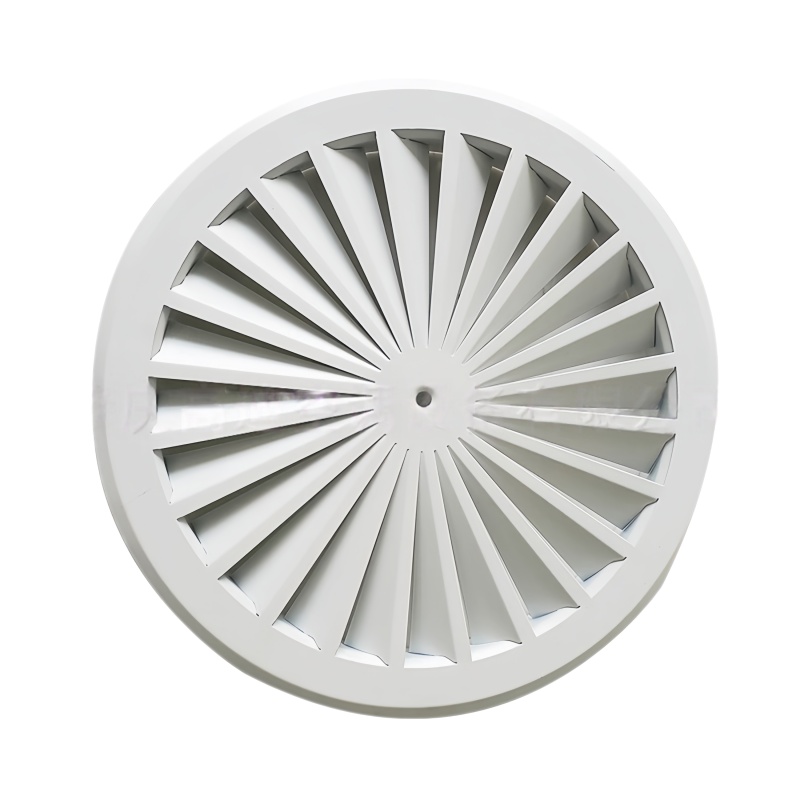

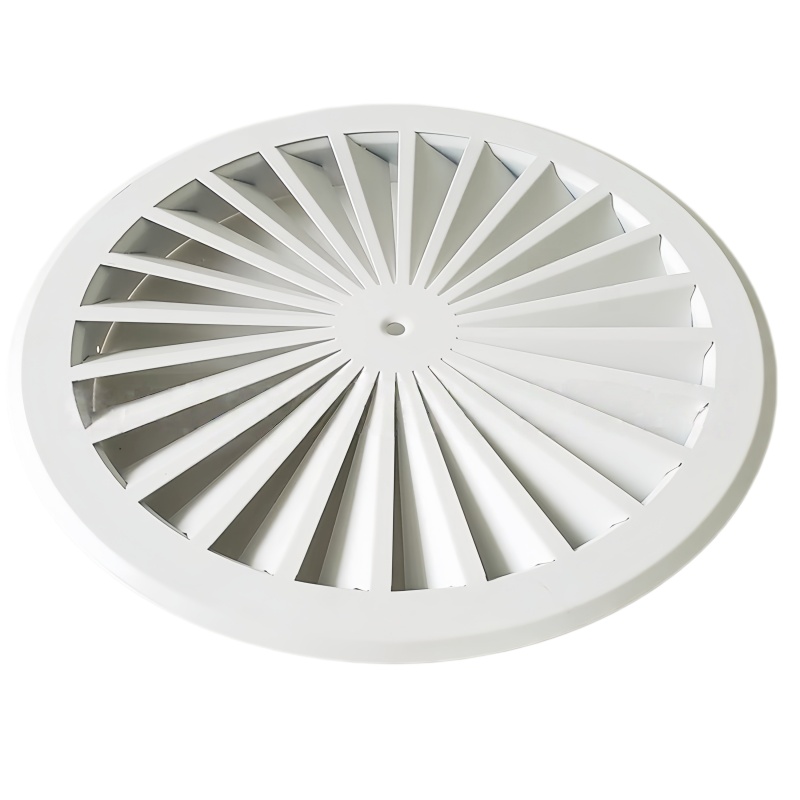

Round 24-Blade Fixed Swirl Diffuser

Product Description

The Round 24-Blade Fixed Swirl Diffuser is designed for efficient air distribution in HVAC ceiling systems. With its precisely arranged 24 fixed blades, the diffuser generates a stable radial swirl airflow pattern, ensuring rapid mixing of supply air with room air for improved thermal comfort and uniform air distribution.

Its circular face design offers a clean architectural appearance while maintaining reliable aerodynamic performance. With no moving parts, this fixed swirl diffuser provides long service life, low maintenance, and consistent airflow performance, making it suitable for both supply and exhaust air applications.

Key Features

• 24 Fixed Blade ConfigurationEngineered with 24 fixed vanes for stable and uniform swirl airflow.
• Round Swirl Air PatternDelivers 360° radial air distribution for rapid air induction and mixing.
• Reliable Fixed DesignNo movable components, ensuring low maintenance and long-term durability.
• Suitable for Supply and Exhaust AirCan be used in ceiling air supply or return/exhaust applications.
• Durable Material ConstructionAvailable in aluminum or galvanized steel with powder-coated finish.
• Clean Circular AppearanceModern round face panel suitable for commercial ceiling systems.
• Easy InstallationSuitable for direct duct connection or installation with plenum box.

Applications

• Office buildings
• Shopping malls
• Hotels
• Restaurants
• Hospitals
• Public buildings
• Commercial ventilation systems
• Industrial HVAC projects

Technical Specifications
