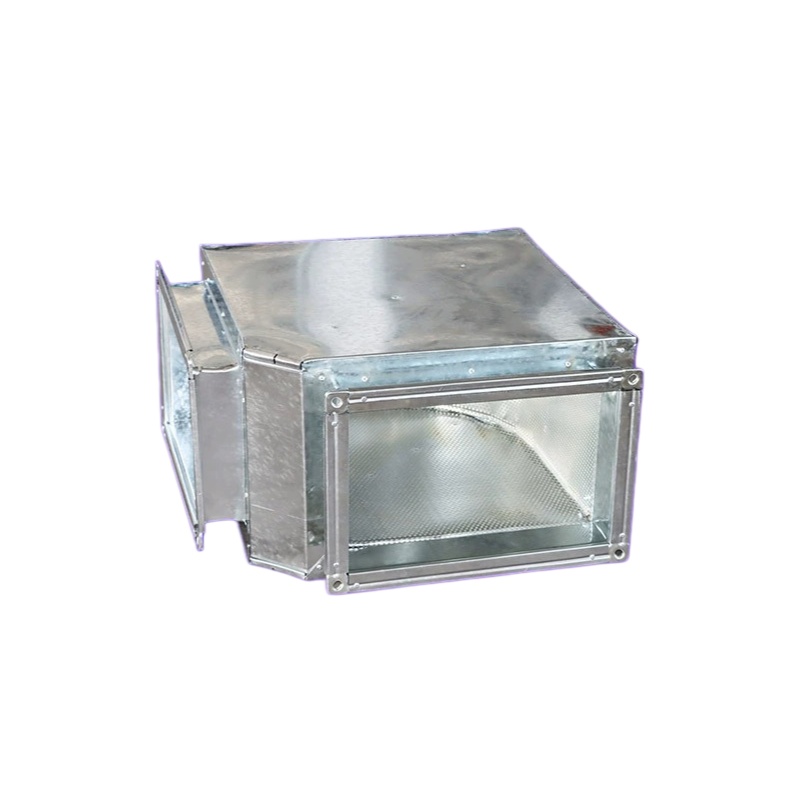

Sound Attenuation Elbow

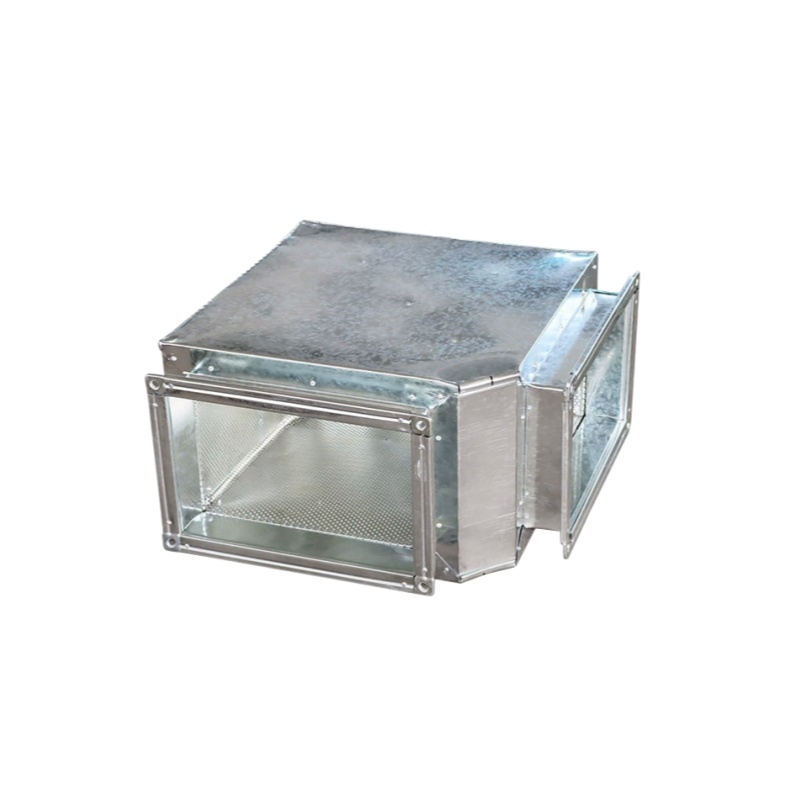

Sound Attenuation Elbow - Image 2

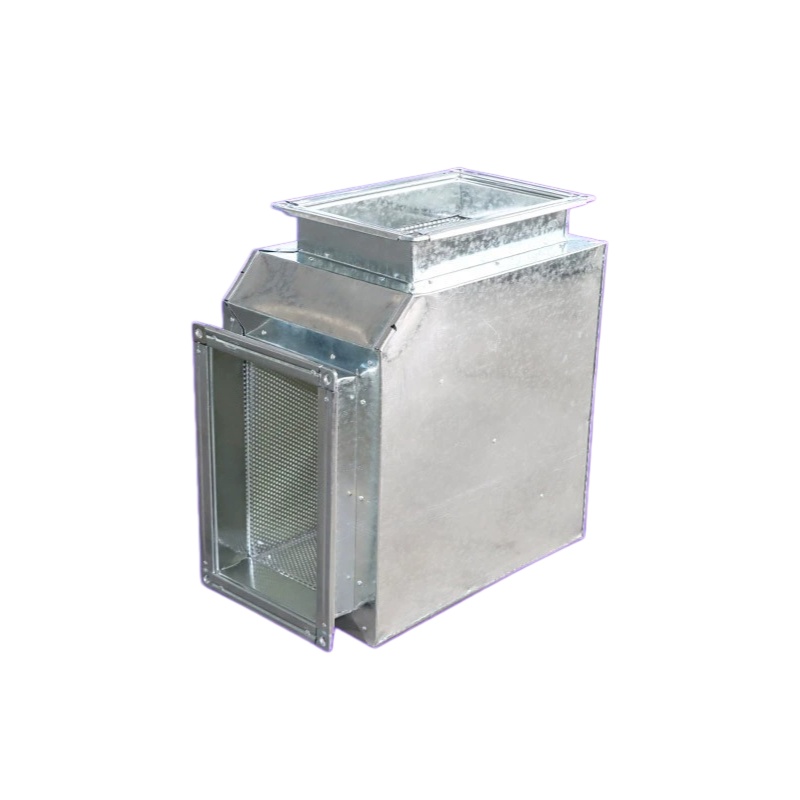

Sound Attenuation Elbow - Image 3

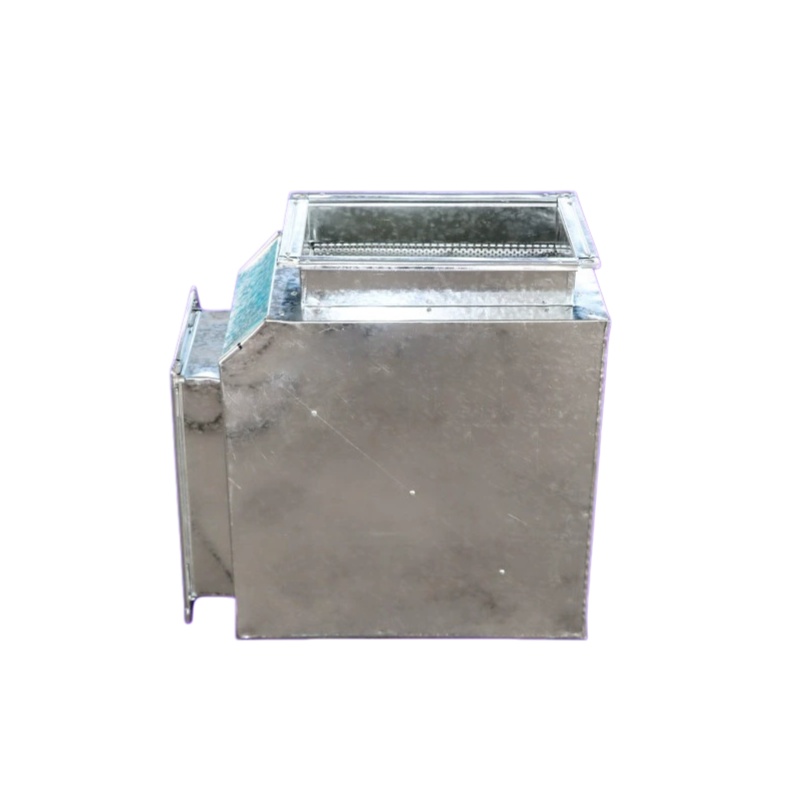

Sound Attenuation Elbow - Image 4
Category

Sound Attenuation Elbow

Acoustic elbow silencer is a compact integrated duct noise reduction solution designed for rectangular HVAC ventilation systems. Combining air turning and acoustic attenuation functions, this splitter-type silencing elbow efficiently controls medium and high-frequency airflow noise with minimal pressure drop. Built with multi optional metal materials including galvanized steel, stainless steel and aluminum, and configurable with fire-resistant acoustic insulation and perforated liners, it ensures durable anti-corrosion performance and enhanced safety. Featuring space-saving structure, stable static pressure balancing and easy installation, it is widely applied in commercial HVAC, underground parking ventilation, industrial duct systems, hospitals and shopping mall noise control projects with full custom size support.
Send Inquiry

Product Description

The Acoustic Elbow Silencer is a high-performance HVAC noise reduction component designed for ventilation and air conditioning duct systems. Combining airflow direction change and acoustic attenuation functions, this silencer elbow effectively reduces fan noise, airflow noise, and mechanical equipment noise while maintaining stable air distribution.

Manufactured from high-quality galvanized steel with internal sound-absorbing materials, the acoustic elbow silencer is widely used in underground garages, commercial buildings, industrial ventilation systems, equipment rooms, and other noise-sensitive environments.

The splitter-type silencer structure provides excellent medium- and high-frequency noise reduction performance while minimizing airflow resistance and pressure loss.

Product Features

  • High-efficiency noise reduction performance
  • Integrated elbow + silencer structure design
  • Galvanized steel construction for corrosion resistance
  • Internal sound-absorbing acoustic materials
  • Optimized airflow design with low resistance
  • Suitable for rectangular duct systems
  • Custom sizes and specifications available
  • Durable and easy to install

Product Functions

  • Noise ReductionReduces airflow noise, fan noise, and duct vibration noise in HVAC systems.
  • Airflow Direction Change Allows smooth air turning within ventilation duct systems while minimizing turbulence.
  • Static Pressure StabilizationBalances airflow pressure and improves air distribution uniformity.
  • System Efficiency ImprovementReduces dynamic pressure loss and enhances overall ventilation system performance.

Technical Characteristics

  • Effective attenuation for medium and high frequencies
  • Low airflow resistance design
  • Available with fire-rated acoustic insulation materials
  • Optional perforated acoustic liner structure

Material Options

  • Galvanized steel
  • Stainless steel
  • Aluminum sheet
  • Fire-resistant acoustic insulation material

Applications

  • Underground parking garage ventilation
  • Commercial HVAC systems
  • Industrial ventilation systems
  • Equipment rooms and machine rooms
  • Shopping malls and office buildings
  • Hotels and hospitals
  • Air conditioning duct systems
  • Noise-sensitive ventilation projects

Advantages

  • Excellent acoustic performance
  • Compact structure saves installation space
  • Dual-function elbow and silencer integration
  • Long service life and corrosion resistance
  • Custom OEM and ODM support available
