VH Suspended Spring Vibration Isolator

Product Description

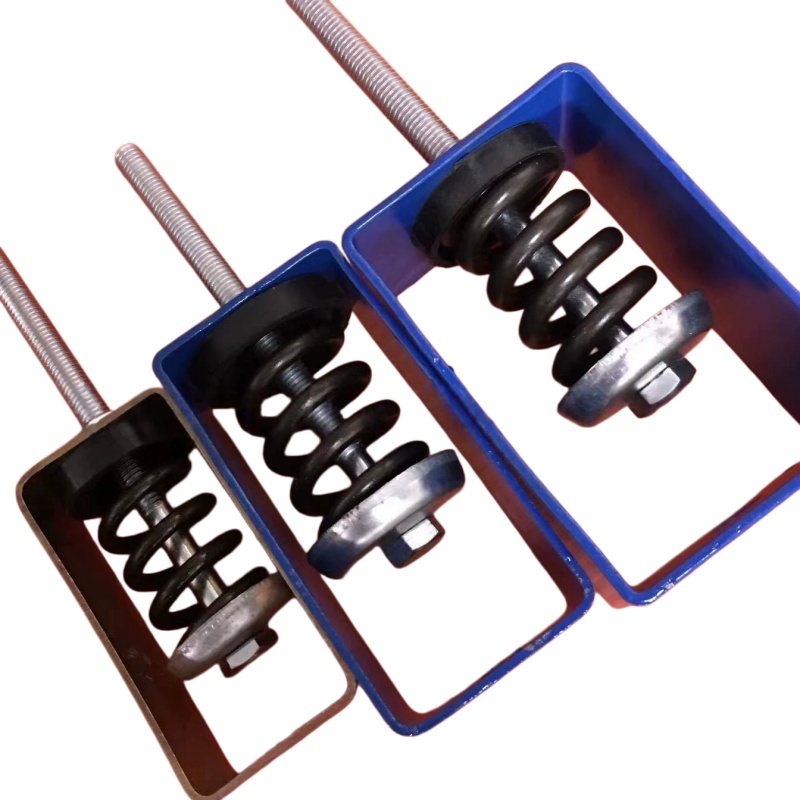

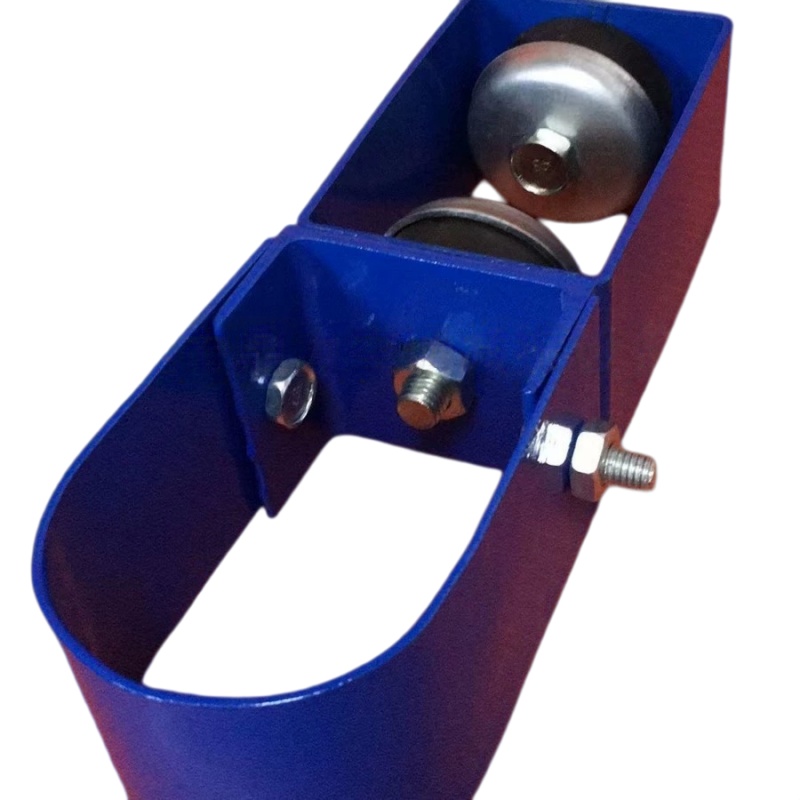

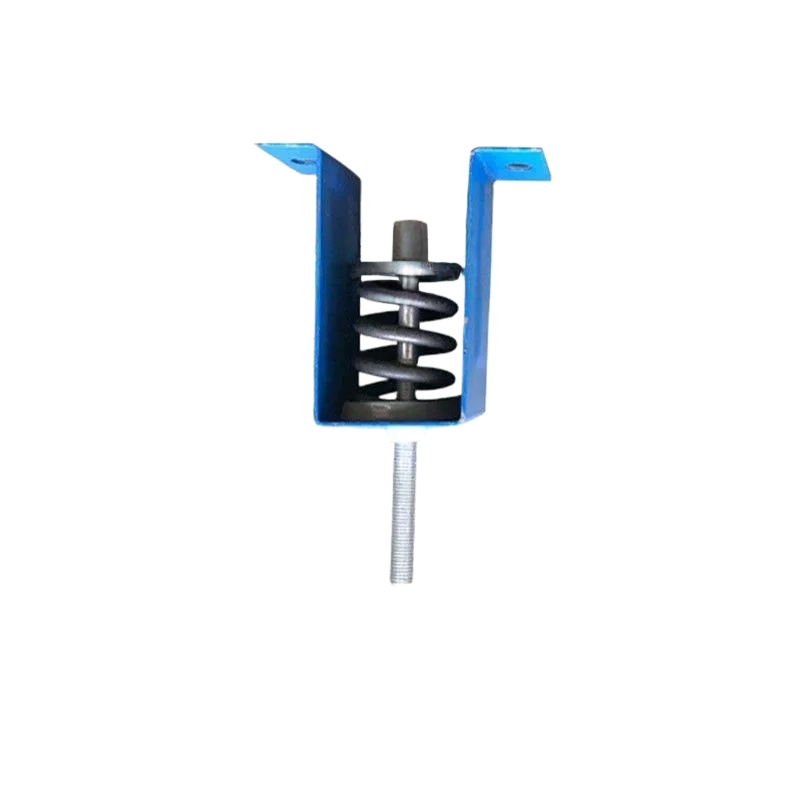

The VH Suspended Spring Vibration Isolator is designed as a preloaded spring hanger using high-quality springs and rubber composite pads. This type of isolator effectively reduces vibration and noise in suspended piping systems, fans, and mechanical equipment.

It is suitable for HVAC systems, air ducts, water pumps, and other suspended machinery. Additionally, it can be used for precision instruments to isolate vibration and reduce shock transmission. The VH hanger provides stable support, uniform load distribution, and low natural frequency for optimal vibration damping performance.

Key Features

• Suspended spring design for effective vibration and noise isolation
• Metal frame with integrated spring and rubber pads for durability
• Preloaded hanger for consistent damping performance
• Reduces transmitted vibration and mechanical impact
• Compact and stable construction for easy ceiling or duct installation
• Suitable for HVAC fans, ducts, water pumps, and suspended equipment
• Can be applied to precision instruments for vibration reduction
• Multiple sizes and load ratings available

Applications

• HVAC fan units
• Air conditioning ducts
• Water pumps and chillers
• Suspended mechanical equipment
• Industrial and commercial ceiling-mounted systems
• Precision instruments requiring vibration isolation

Technical Specifications

• Model: VH Series
• Type: Suspended spring vibration isolator / hanger
• Material: Steel frame with integrated spring and rubber pads
• Rated Load Range: 30–600 kg (depending on model)
• Spring Stiffness: 10.1–164 N/mm
• Thread Sizes: M10–M20 (depending on model)
• Isolation Frequency: 2–8 Hz
• Installation: Hook suspension at top and bottom
• Customization: Multiple sizes, load ratings, and spring stiffness available
