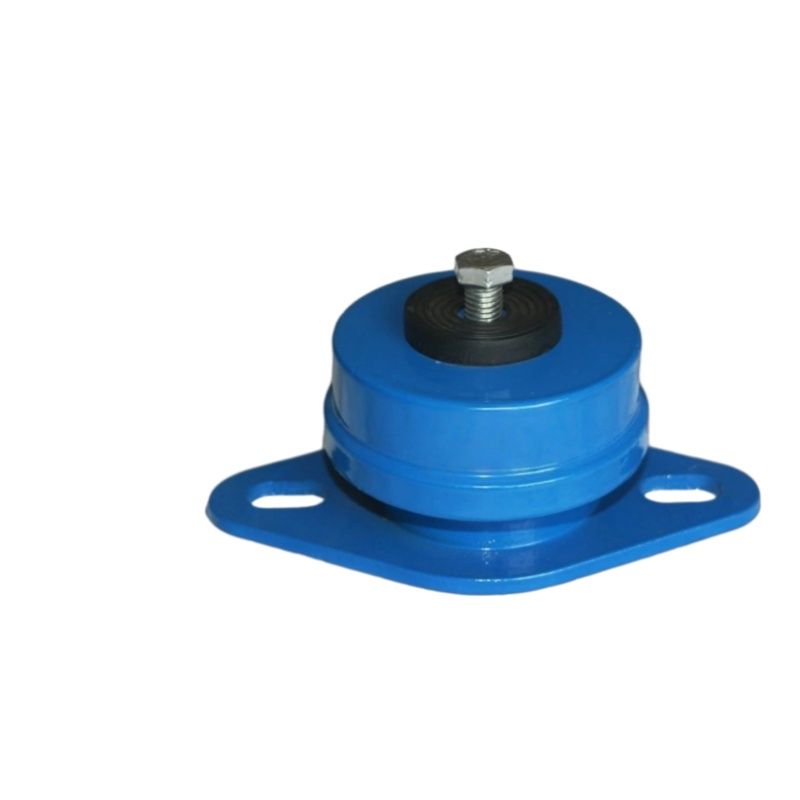

ZD Type Adjustable Spring Vibration Isolator
High-quality ZD Type adjustable spring vibration isolator for HVAC equipment, fans and pumps. This heavy-duty anti-vibration spring mount adopts integrated damping technology and high-performance steel spring systems to achieve superior vibration attenuation and noise reduction. Equipped with precise height adjustment design and strong load-bearing capacity, the mechanical spring damper supports stable installation of various industrial mechanical equipment. Durable anti-corrosion construction guarantees reliable vibration isolation performance for HVAC systems, ventilation blowers, cooling towers and compressors in commercial and industrial environments.
Product Description
The ZD Type Adjustable Spring Vibration Isolator is designed to effectively reduce vibration and noise generated by mechanical equipment such as HVAC units, fans, pumps, and air handling systems. Featuring a high-performance steel spring combined with a damping structure, this isolator provides excellent vibration attenuation and equipment protection.
The adjustable seat-mounted design allows precise height leveling and load distribution, ensuring stable installation and optimal performance. It is widely used in commercial buildings, industrial facilities, and mechanical rooms where vibration control is critical.
Key Features
- Efficient Vibration Isolation High-quality spring system absorbs low and high-frequency vibrations
- Adjustable Height Design Built-in leveling bolt for precise installation and alignment
- Strong Load Capacity Suitable for various equipment weights and operational conditions
- Durable Construction Made of high-strength steel with anti-corrosion coating
- Integrated Damping Structure Enhances vibration absorption and reduces resonance
- Easy Installation Seat-mounted base design ensures quick and stable setup
Applications
- HVAC systems (Air Handling Units, Chillers, FCUs)
- Ventilation fans and blowers
- Water pumps and cooling towers
- Compressors and mechanical equipment
- Commercial buildings and industrial plants
- Data centers and equipment rooms
Technical Specifications (Typical)
- Type: Spring Vibration Isolator (Seat Mounted)
- Model: ZD Series
- Load Capacity: 20 kg – 3000 kg (customizable)
- Natural Frequency: 2.5 – 5 Hz
- Deflection: 25 mm – 50 mm
- Material: Carbon Steel / Galvanized Steel
- Surface Treatment: Powder Coated / Anti-corrosion
- Adjustment Range: ±10 mm
