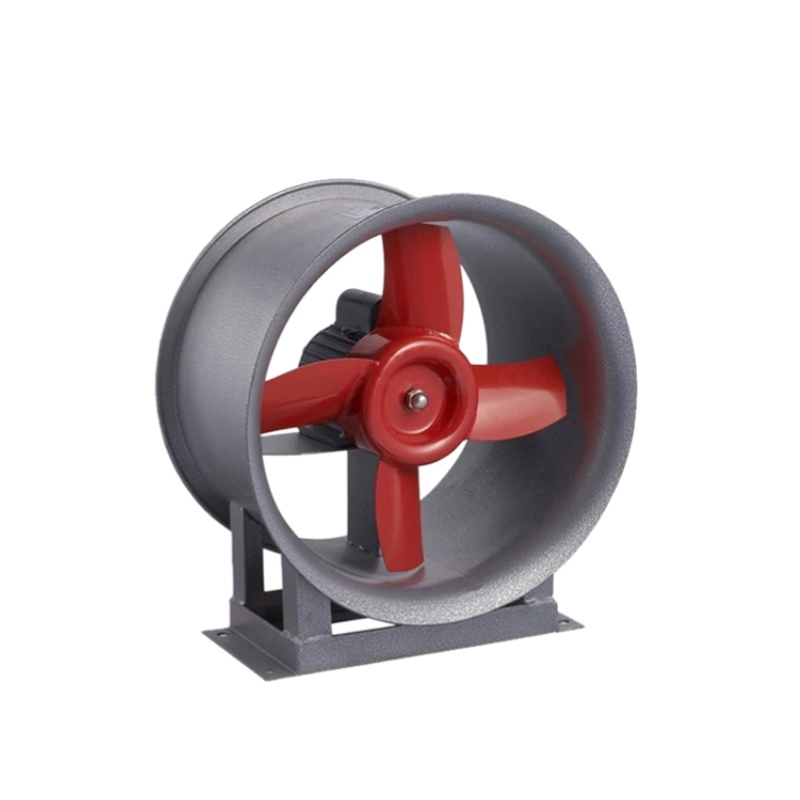

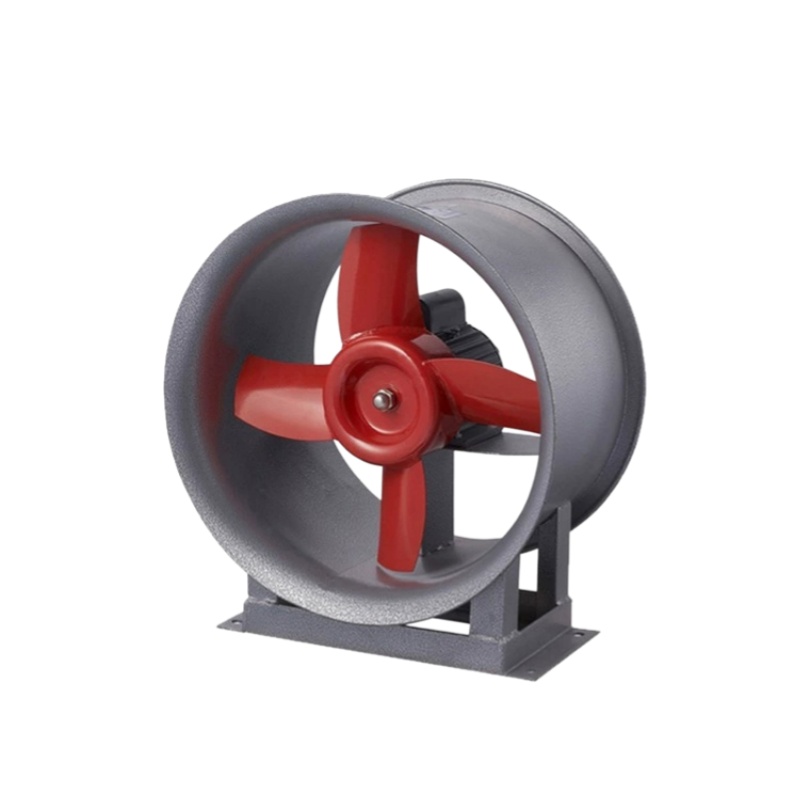

T35 Axial Flow Ventilator / BT35 Explosion-Proof Axial Fan

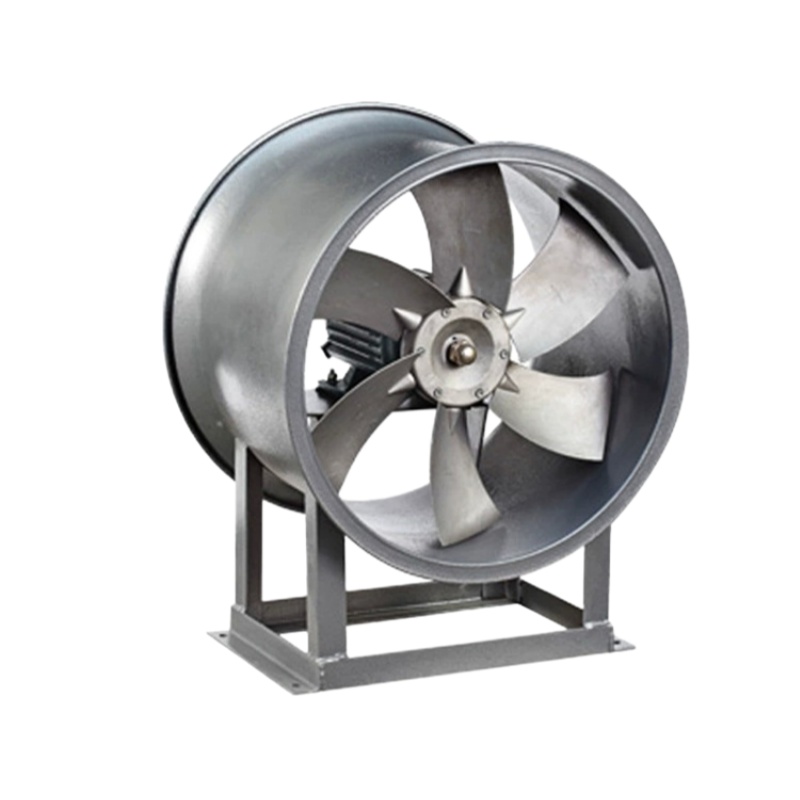

T35 Axial Flow Ventilator / BT35 Explosion-Proof Axial Fan - Image 2

Category Axial Fans

T35 Axial Flow Ventilator / BT35 Explosion-Proof Axial Fan

Industrial T35 low-noise axial ventilator and BT35 explosion-proof axial flow fan, large airflow, low vibration, easy maintenance. Professional for industrial ventilation, pipeline exhaust and explosive environment air exchange.

Product Overview

The T35 Axial Flow Ventilator is a low-noise, high-efficiency axial fan designed for industrial and commercial ventilation applications. The BT35 model is the explosion-proof version, specially engineered for hazardous environments containing flammable or explosive gases.

The fan is suitable for ventilation, heat dissipation, air circulation, and exhaust systems in factories, warehouses, workshops, offices, residential buildings, and industrial pipelines. It can also be installed in series within long duct systems to increase air pressure.

Product Features

High Efficiency Ventilation Optimized axial impeller design provides large airflow volume with stable air pressure performance.
Low Noise Operation Special low-noise blade structure reduces operational sound levels, making the fan suitable for continuous industrial and commercial use.
Durable Construction Manufactured with high-quality steel structure and reliable motor configuration for long service life.
Flexible Installation Can be wall-mounted, pipeline-installed, or connected in series within duct systems to enhance ventilation pressure.
Explosion-Proof Option BT35 explosion-proof model is suitable for hazardous environments containing flammable or explosive gases.
Multiple Blade Angle Configurations Different blade angles are available to satisfy various airflow and pressure requirements.

Applications

T35 Standard Axial Fan

Industrial factories
Warehouses
Workshops
Commercial buildings
Office ventilation
Residential ventilation
HVAC ventilation systems
Heat dissipation systems

BT35 Explosion-Proof Axial Fan

Chemical plants
Petroleum facilities
Paint workshops
Gas stations
Dust-explosion environments
Hazardous industrial ventilation systems

Working Conditions

Conveyed medium: Non-corrosive gas without excessive dust
Medium temperature: ≤ 50°C
Suitable for continuous ventilation operation
Can be installed in long exhaust duct systems

Certifications

The products comply with multiple international certifications, including:
CE Certification
CCC Certification
CB Certification
SASO Certification
GCC Certification
Explosion-proof models comply with relevant international explosion-proof safety standards.

Main Technical Parameters

Model	Power (kW)	Speed (r/min)	Air Volume (m³/h)	Total Pressure (Pa)	Noise dB(A)
2.8A	0.18–0.55	2800	2560–4155	143–247	≤72–79
3.15A	0.12–0.37	1400–2800	2078–3418	51–189	≤63–76
3.55A	0.18–1.1	1400–2800	2783–5951	65–314	≤67–83
4A	0.25–1.5	1400–2800	4261–7685	83–354	≤71–85
4.5A	0.37–0.55	1400	6067–6455	108–126	≤74–75
5A	0.75–1.1	1400	7907–8712	146–165	≤78–79
5.6A	0.37–1.1	910–1400	5768–12239	72–206	≤70–82
6.3A	0.75–2.2	910–1420	10472–17426	101–261	≤76–86
7.1A	1.1–2.2	910–1420	16501–16514	145–251	≤81–85
7.5A	3–5.5	1420–1450	19450–29644	280–332	≤87–90
8A	2.2–7.5	960–1450	23624–35682	184–420	≤84–93
9A	2.2–4	960	30532–33937	206–233	≤86–88
10A	4–7.5	960	38333–46141	227–288	≤88–91
11.2A	7.5–11	960	53855–64825	285–361	≤86–92
