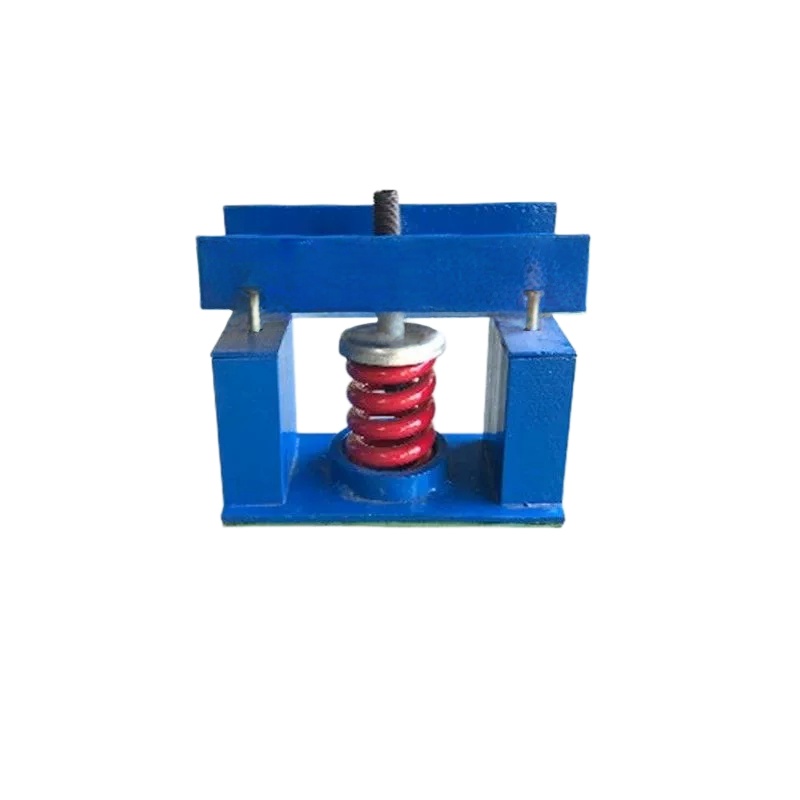

AT Type Damping Spring Vibration Isolator

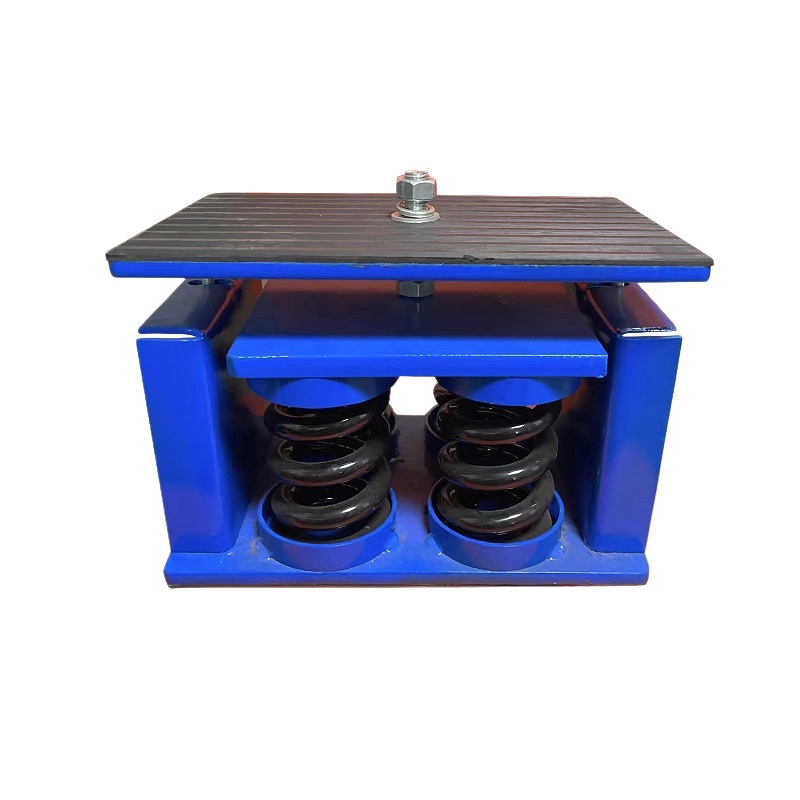

AT Type Damping Spring Vibration Isolator - Image 2

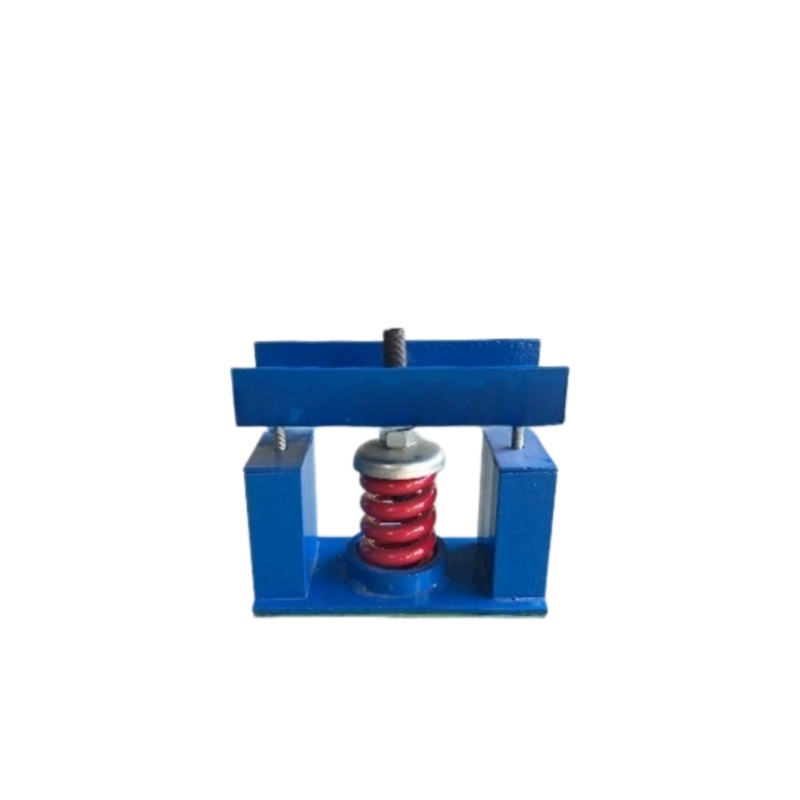

AT Type Damping Spring Vibration Isolator - Image 3
Category

AT Type Damping Spring Vibration Isolator

AT Type Damping Spring Vibration Isolator for Fans, Duct Systems and HVAC Units

AT Type Damping Spring Vibration Isolator is engineered for vibration and noise control in HVAC and mechanical systems. With a spring-damping combined structure, low natural frequency, and stable seat-type design, it is ideal for fans, duct systems, air handling units, and other equipment requiring reliable vibration isolation.

Send Inquiry

Product Description

The AT Type Damping Spring Vibration Isolator is designed to reduce vibration and noise transmission from HVAC equipment and mechanical systems. It features a combined spring and damping structure, providing stable performance, low natural frequency, and effective vibration isolation for fans, duct systems, air handling units, and other equipment.

With its open-frame design, the isolator offers high flexibility, reliable stability, and convenient installation. It can be installed directly under the equipment base, and the unit may also be pre-fixed to the foundation with anchor bolts where required. A rubber anti-slip pad is bonded to the steel base to further improve damping performance and installation stability.

This type of vibration isolator is widely used in commercial and industrial HVAC applications where efficient control of structure-borne vibration is essential.

Key Features

  • Spring and damping combined design for effective vibration and shock reduction
  • Low natural frequency for better isolation efficiency
  • Stable open-frame structure with reliable load-bearing performance
  • Rubber anti-slip base pad for improved damping and secure placement
  • Suitable for multiple equipment types, including fans, ducts, pumps, and HVAC units
  • Direct floor or base installation for easy onsite mounting
  • Available in multiple spring combinations and deflection options
  • Custom specifications available based on load and application requirements

Applications

  • HVAC fans
  • Ventilation duct systems
  • Air handling units (AHU)
  • Air conditioning units
  • Pumps and mechanical equipment
  • Rooftop units
  • Industrial ventilation systems
  • Equipment requiring vibration and noise isolation

Technical Features

  • Structure: Multi-spring combination with damping rubber pad
  • Installation Type: Base-mounted / seat type
  • Deflection Options: 25 mm / 50 mm / 75 mm / 100 mm
  • Natural Frequency at Rated Load: approx. 3.2 Hz / 2.2 Hz / 1.8 Hz / 1.6 Hz
  • Damping Ratio: 0.03–07
  • Material: Steel frame with spring assembly and bonded rubber pad
  • Configuration: Available in multiple spring combinations such as 1-spring, 2-spring, 4-spring, 6-spring, and 9-spring assemblies
