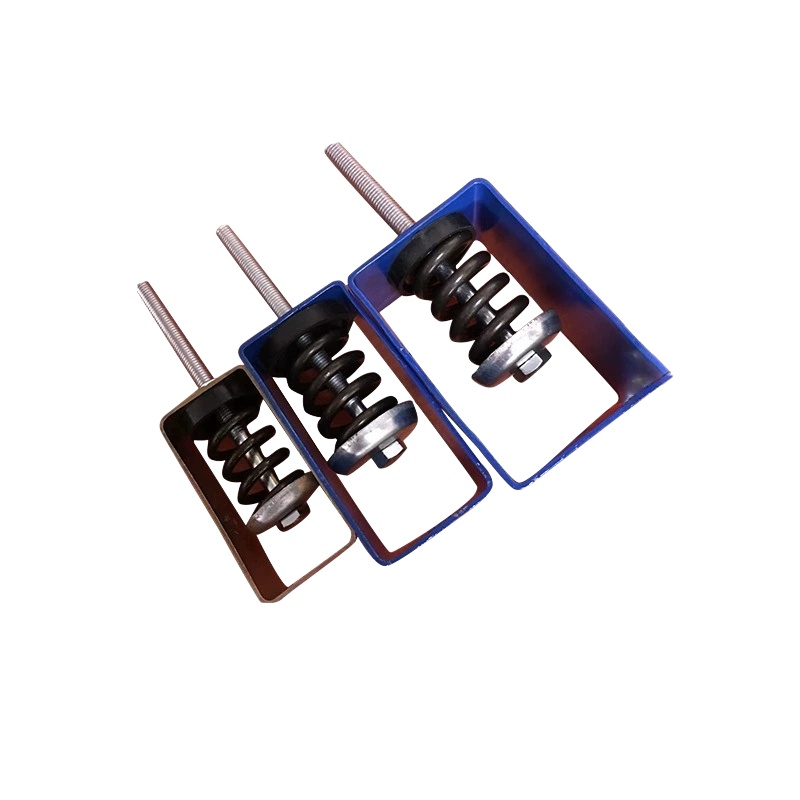

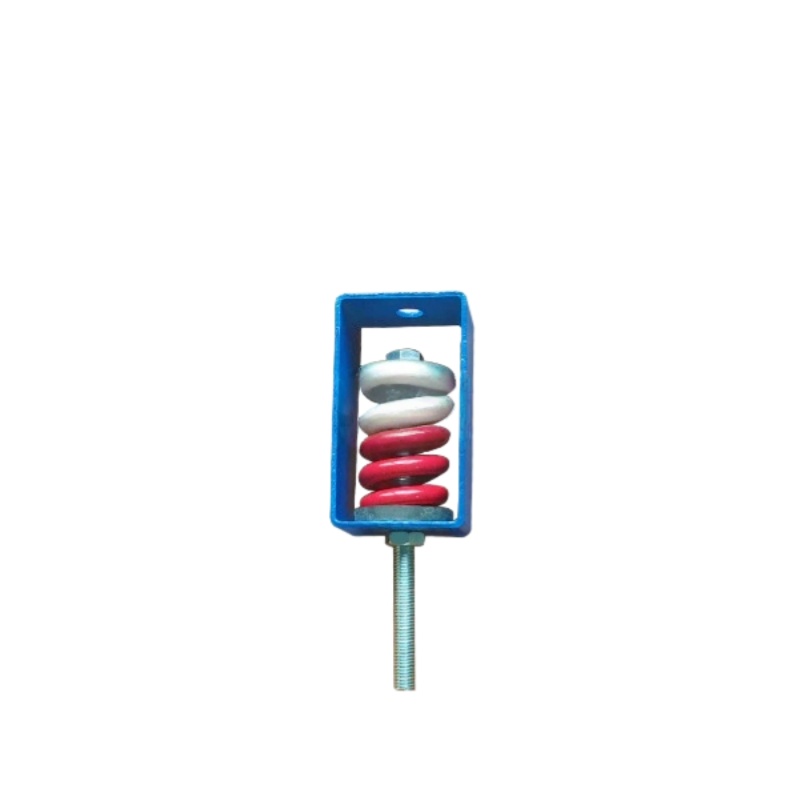

TD Type Damping Spring Hanger
TD Type damping spring hanger is a heavy-duty ceiling-mounted spring isolator specially designed for HVAC fans, water pumps, air handling units and fan coil systems. This suspended spring vibration mount adopts premium spring steel and solid metal frame construction to achieve efficient vibration damping and noise reduction for overhead mechanical equipment. With full model specifications covering 45–500 kg load range and M8 to M16 thread sizes, this industrial spring damping hanger maintains steady performance under cyclic dynamic loads. Compact in structure and simple to install & adjust, the duct spring vibration isolator effectively protects suspended pipelines and ceiling-mounted machinery, serving as an essential vibration control accessory for commercial central air conditioning and industrial ventilation systems.
Product Description
The TD Type Damping Spring Hanger is designed for ceiling-mounted HVAC fans, air handling units, and water pumps. This spring hanger effectively reduces vibration and noise, protecting equipment and building structures from vibration-induced damage.
The TD spring hanger combines high-performance springs with durable metal frames, ensuring long-lasting support and reliable damping under dynamic loads. Its compact and robust design allows easy installation in suspended piping systems and mechanical setups.
This type of spring isolator hanger is suitable for central air conditioning systems, fan coils, pumps, and other suspended mechanical equipment where vibration isolation is required.
Key Features
- Effective vibration damping and noise reduction for ceiling-mounted equipment
- Durable spring and metal frame construction
- Compact design suitable for suspended installation
- Reduces transmitted vibration and structural impact
- Protects HVAC equipment, fan coils, and pumps
- Stable performance under dynamic loads
- Easy installation and adjustment
- Available in multiple sizes and load capacities
Applications
- Central air conditioning systems
- HVAC fan units
- Water pumps
- Fan coil units
- Suspended pipelines and mechanical equipment
- Industrial or commercial suspended machinery requiring vibration isolation
Technical Specifications
- Model: TD Series
- Type: Ceiling-mounted damping spring hanger
- Structure: Steel frame with integrated spring
- Material: High-strength spring steel + metal frame
- Rated Load Range: 45–500 kg (depending on model)
- Spring Stiffness: 14.2–1 N/cm
- Dimensions: See model-specific dimensions (A, B, C, D in mm)
- Thread Sizes: M8–M16 (depending on model)
- Installation: Suspended mounting to ceiling or duct support
- Customization: Multiple sizes, load capacities, and spring ratings available
