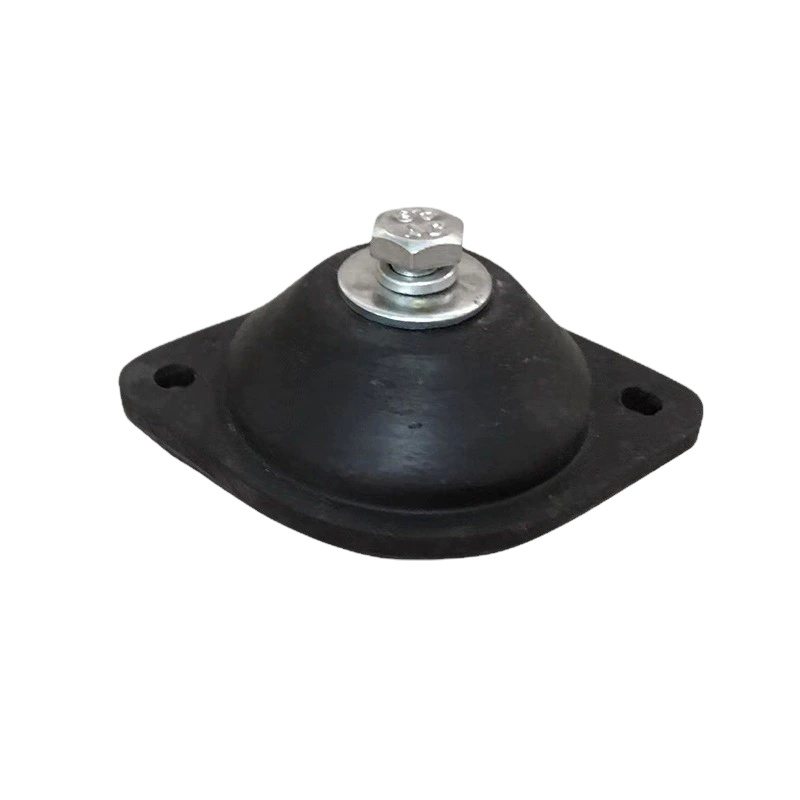

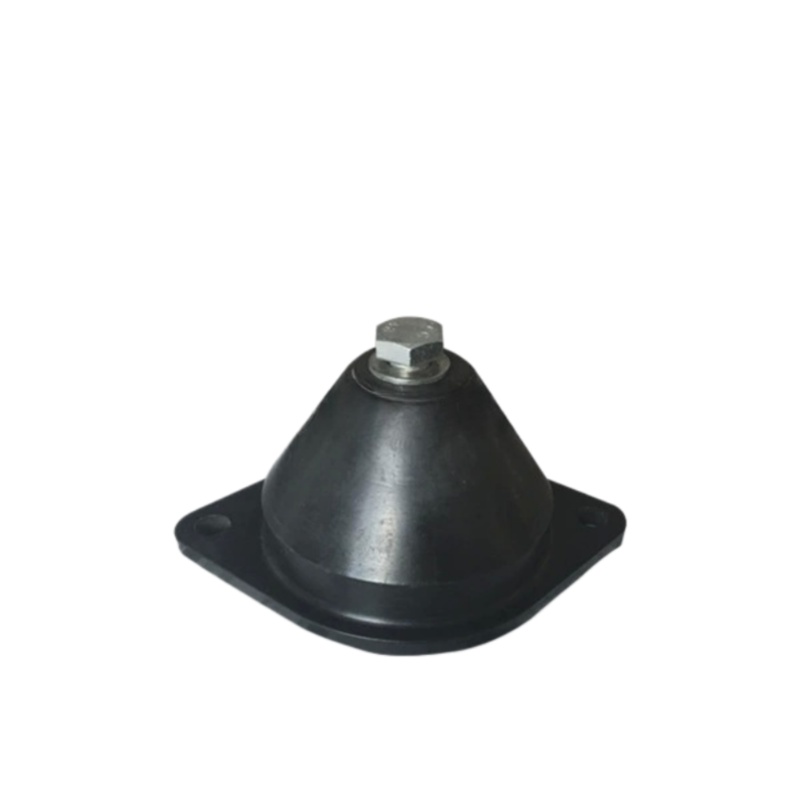

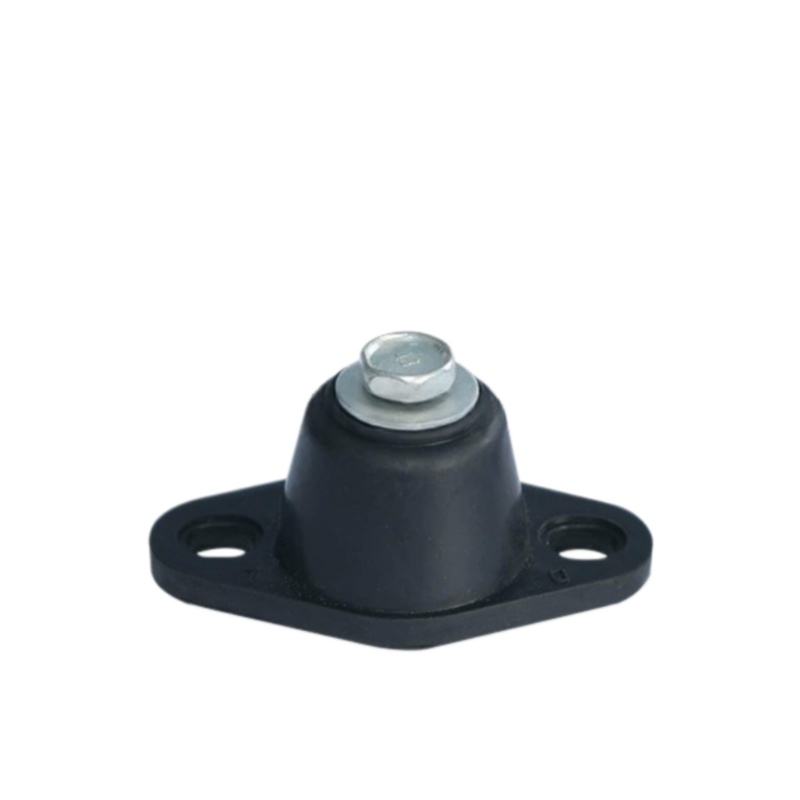

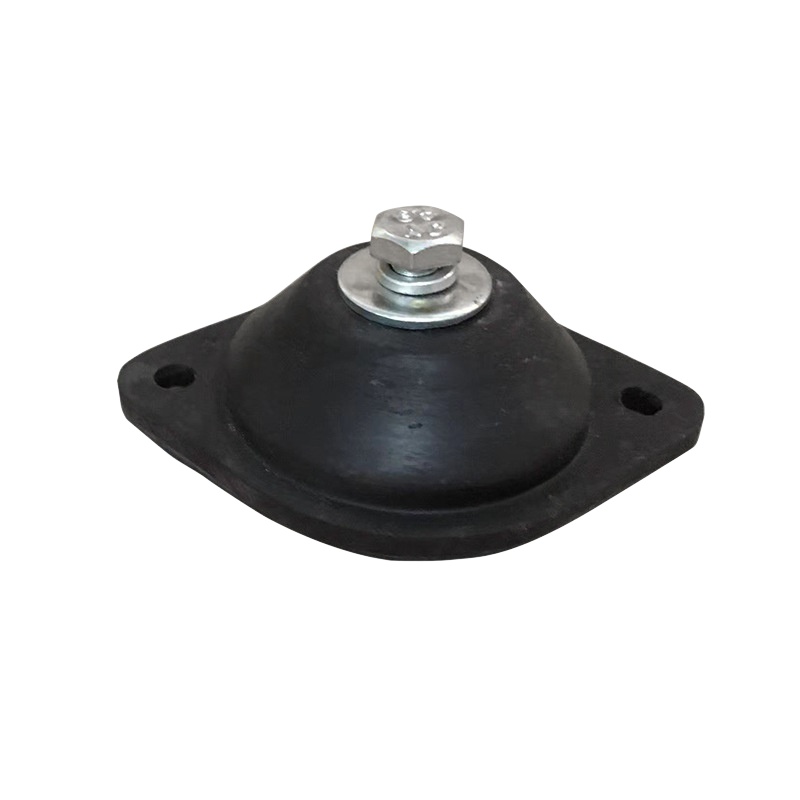

JB Rubber Vibration Isolator
JB Series rubber vibration isolator is a durable compact rubber anti-vibration mount specially designed for air conditioners, ventilation fans, water pumps and small mechanical equipment. Made of optional natural, synthetic, nitrile or buna rubber, this HVAC rubber damping pad achieves stable vibration damping and noise reduction for motors and compressors. Supporting 10–60kg load range with standard 7mm mounting holes and fixed outer dimensions, this small machinery rubber pad features simple direct installation under equipment bases. Reliable, low-cost and easy to maintain, this shock absorbing rubber mount serves as an ideal mechanical vibration damper for commercial HVAC systems and light industrial machinery.
Product Description
The JB Rubber Vibration Isolator series is made from high-quality natural rubber, premium synthetic rubber, nitrile rubber, or buna rubber, providing excellent durability and long service life. Its simple structure ensures easy installation, reliable performance, and effective vibration reduction for small mechanical equipment.
This isolator is particularly suitable for air conditioning units, fans, electric motors, compressors, pumps, and other small-scale machinery, providing efficient damping, noise reduction, and vibration isolation. Compact and reliable, the JB rubber mount protects both equipment and supporting structures from vibration-induced stress.
Key Features
- High-quality rubber construction for long-lasting durability
- Effective vibration isolation and noise reduction
- Compact and simple design for easy installation
- Suitable for small fans, motors, compressors, and pumps
- Stable performance and reliable operation
- Protects equipment and supporting structures
- Cost-effective solution for industrial and commercial applications
Applications
- Air conditioning units (HVAC)
- Fans and blowers
- Electric motors
- Compressors
- Water pumps
- Small mechanical equipment
- Industrial and commercial machinery requiring vibration damping
Technical Specifications
- Model: JB Series
- Type: Rubber vibration isolator / damping mount
- Material: Natural rubber, synthetic rubber, nitrile, or buna rubber
- Load Range: 10–60 kg (depending on model)
- Compression Deflection: 1–1.5 mm
- Mounting Hole Size: 7 mm (for JB-1 / JB-2)
- Outer Dimensions: A = 90 mm, B = 78 mm, W = 36 mm
- Installation: Direct mounting under equipment base
- Customization: Various load ratings, sizes, and rubber hardness available
