HZD Type Damping Spring Vibration Isolator

Product Description

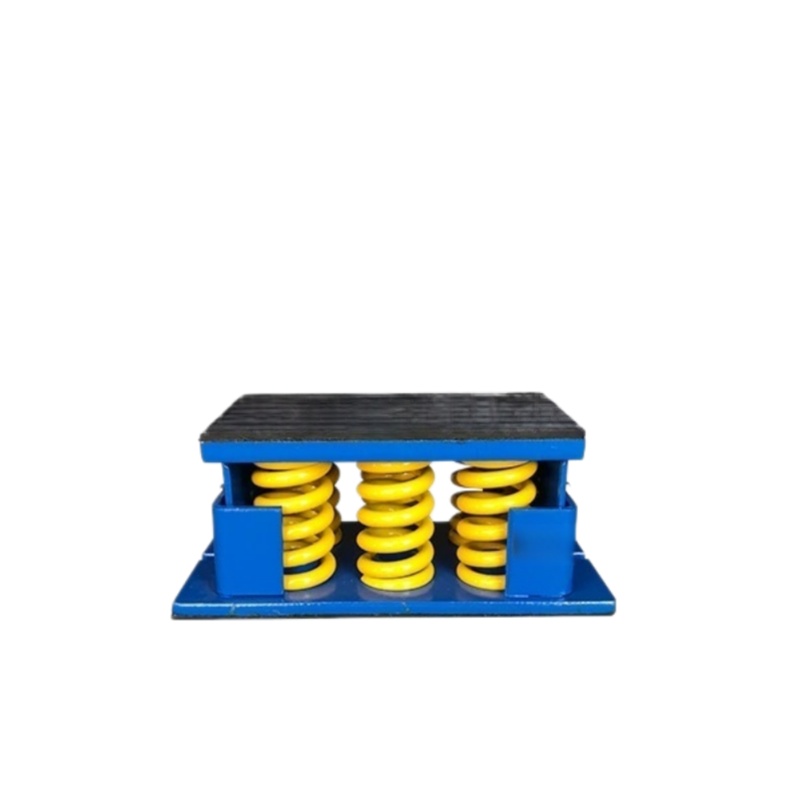

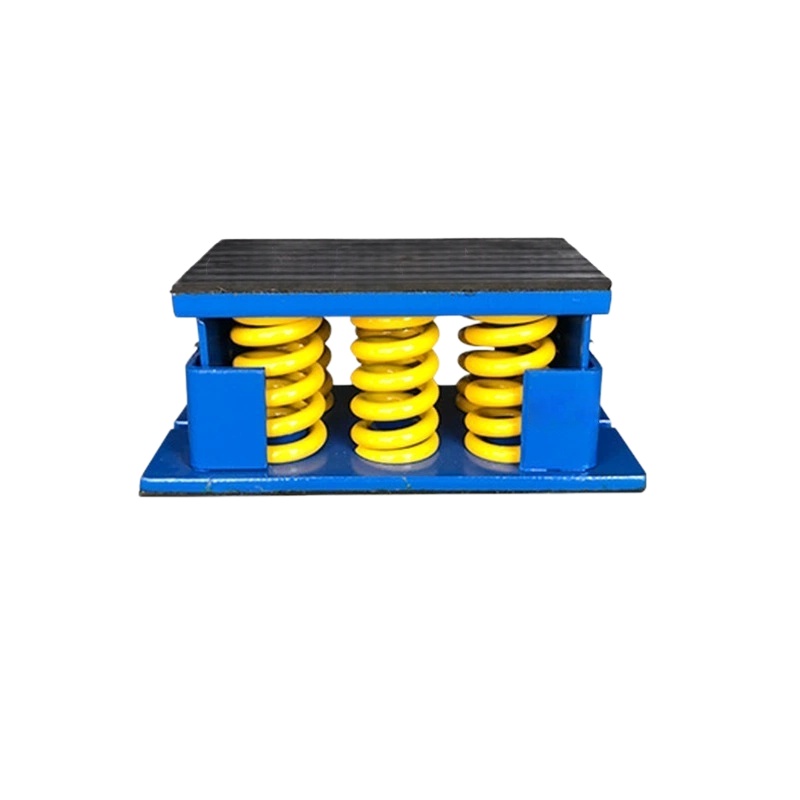

The HZD Type Damping Spring Vibration Isolator is a heavy-duty anti-vibration solution designed for HVAC systems, piping equipment, fans, pumps, chillers, cooling towers, and generator sets. It is assembled from outer-diameter steel springs, upper and lower steel plates, leveling blocks, positioning bolts, and anti-slip rubber pads into an integrated vibration isolation structure.

This series features low natural frequency, high load capacity, and stable performance, making it highly effective in reducing vibration transmission and operating noise. The HZD isolator is especially suitable for equipment with large vibration amplitude, such as generator sets and heavy-duty mechanical units.

Its adjustable leveling structure also helps ensure proper installation alignment, making it a reliable choice for industrial and commercial vibration control applications.

Key Features

• Heavy-duty spring damping design for efficient vibration isolation
• Low natural frequency for improved anti-vibration performance
• High load-bearing capacity for large mechanical equipment
• Adjustable leveling structure for easier installation and alignment
• Composed of spring, steel plates, positioning bolts and rubber pad
• Stable operation under dynamic loads
• Effective in reducing structure-borne vibration and noise
• Particularly suitable for generator sets and high-vibration equipment

Applications

• HVAC units
• Ventilation duct systems
• Fans and blowers
• Water pumps
• Chillers
• Cooling towers
• Generator sets
• Industrial machinery and heavy mechanical equipment

Technical Specifications

• Model: HZD Series
• Type: Damping spring vibration isolator
• Structure: Steel springs + upper/lower steel plates + leveling block + positioning bolt + anti-slip rubber pad
• Installation Type: Base mounted / seat type
• Function: Vibration isolation, shock absorption, noise reduction, equipment leveling
• Suitable Equipment: Pipes, fans, pumps, chillers, cooling towers, generator sets
• Customization: Different sizes, load ratings and configurations available upon request
