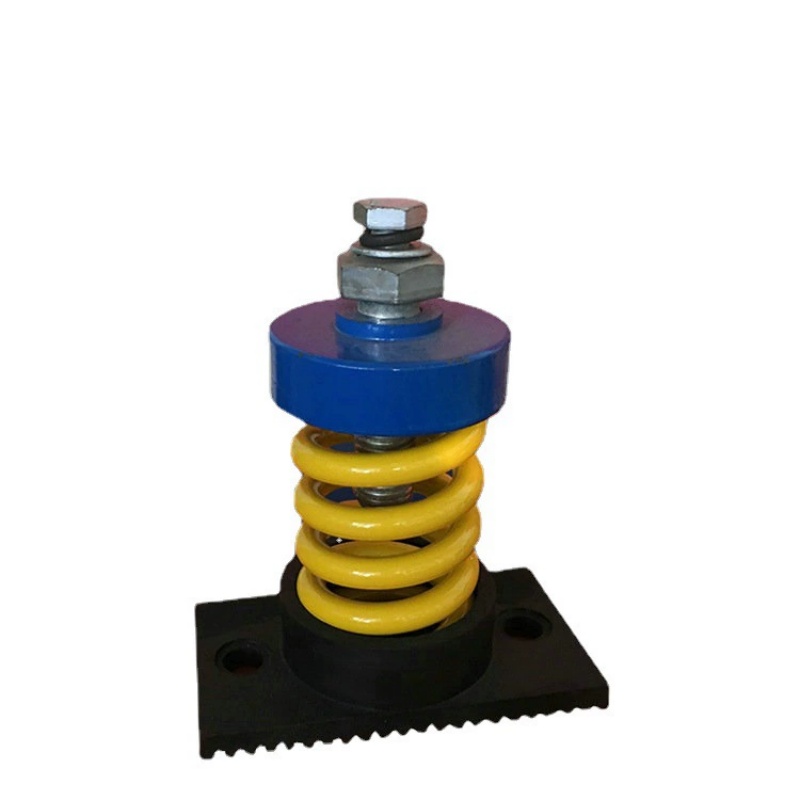

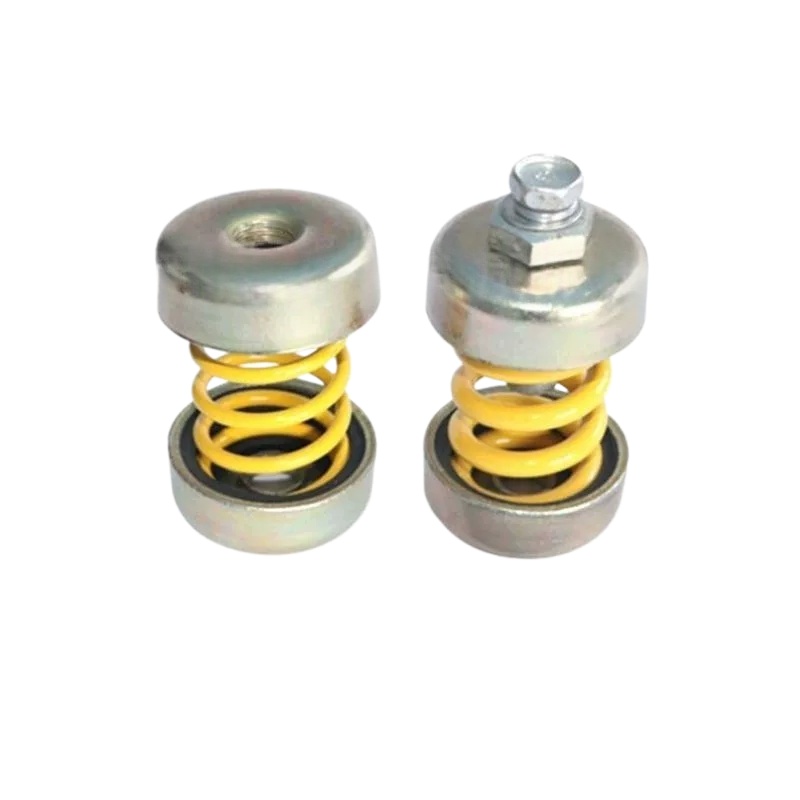

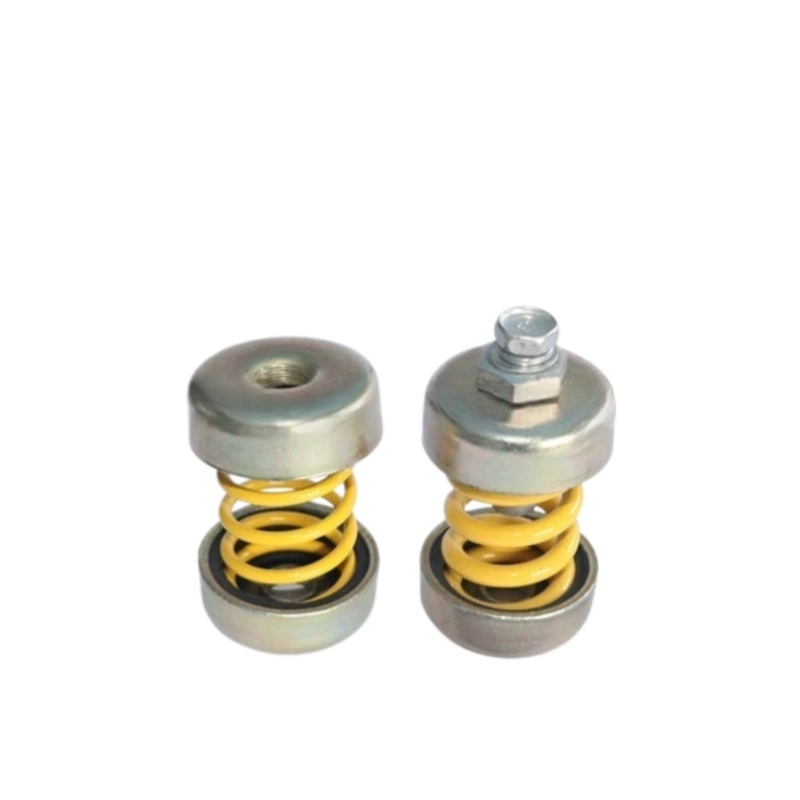

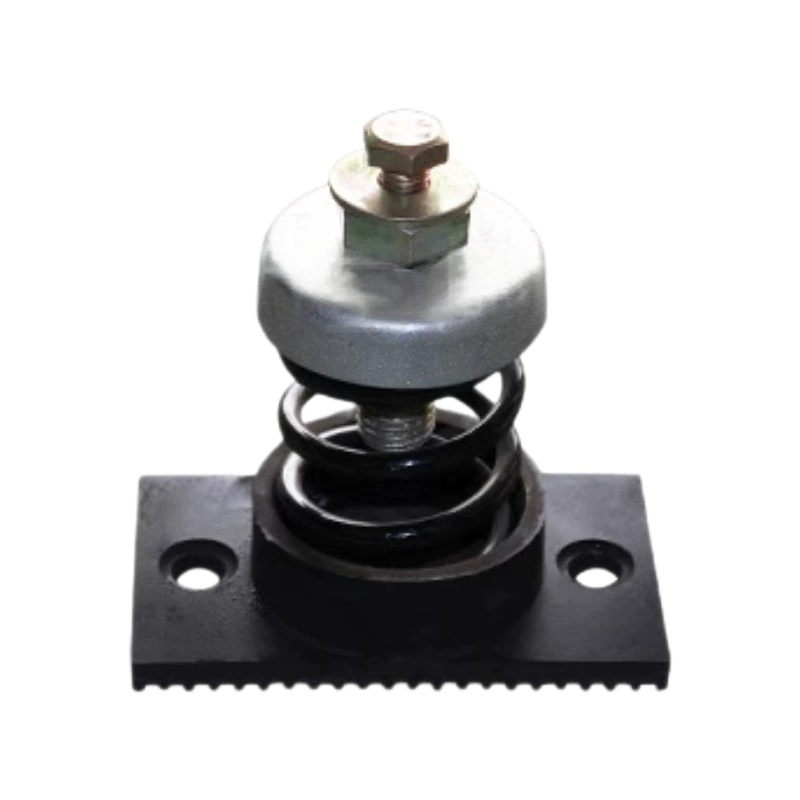

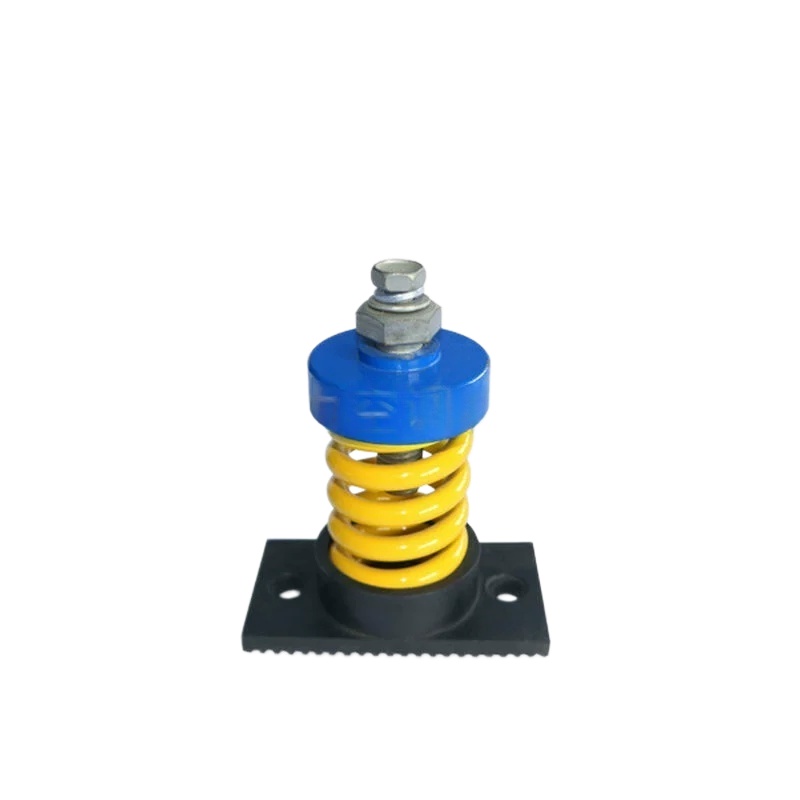

Product Description

The XHB Spring Vibration Isolator is designed for efficient vibration reduction in water chillers, HVAC equipment, and other mechanical systems. Based on an optimized spring isolator structure, this series features a simple design, stable performance, and easy installation.

Its spring diameter is proportionally matched with the working height, which helps maintain excellent lateral stability during operation. The XHB series is suitable for controlling equipment vibration, reducing noise transmission, and protecting supporting structures from mechanical shock and resonance.

This type of spring isolator is widely used in water-cooled units, pumps, chillers, and various industrial or commercial mechanical installations.

Key Features

• Effective vibration isolation for HVAC and mechanical equipment
• Compact and simple structure for easy installation and maintenance
• High lateral stability due to optimized spring diameter-to-height ratio
• Suitable for multiple mounting base options
• Reliable load-bearing performance for different equipment weights
• Helps reduce transmitted vibration and operating noise
• Ideal for chilled water units, pumps, and similar equipment

Applications

• Water chillers
• Chilled water units
• HVAC equipment
• Pumps
• Mechanical equipment
• Air conditioning systems
• Industrial machinery requiring vibration isolation

Technical Specifications

• Model: XHB Series
• Type: Spring vibration isolator
• Optional Types:
• A: Rubber base with circular mounting plate
• B: Steel circular mounting plate
• C: Steel square mounting plate with rubber layer
• Rated Load Range: approx. 10–220 kg
• Spring Deflection: approx. 1.5–5 mm
• Material: Steel spring with metal housing / mounting base
• Application: Water chillers, pumps, HVAC and general mechanical equipment
