JM1 Type Damping Spring Vibration Isolator – Seat Mounted
JM1 Type damping spring vibration isolator designed for seat-mounted installation on HVAC units, water pumps and ventilation fans. This heavy-duty seat-mounted spring damper features a sealed protective casing and robust steel spring structure for efficient mechanical vibration damping and noise control. Equipped with adjustable height and flexible load capacity from 10kg to 500kg, this pump and fan anti-vibration mount provides stable equipment support and accurate leveling. Compact structure, durable construction and easy installation make it an ideal mechanical spring isolator for commercial buildings, industrial facilities and data center mechanical systems.
Product Description

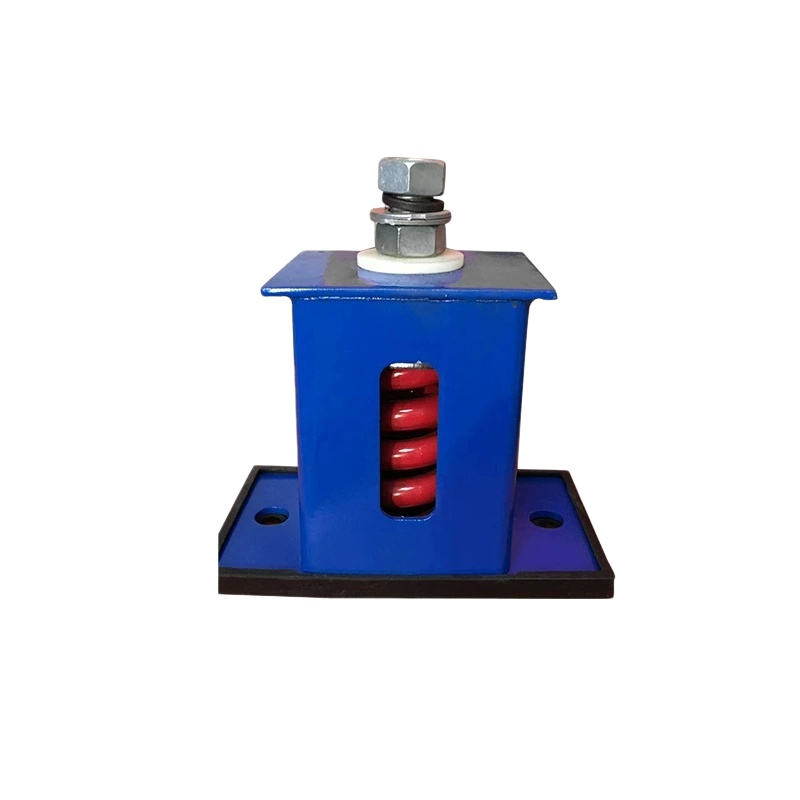

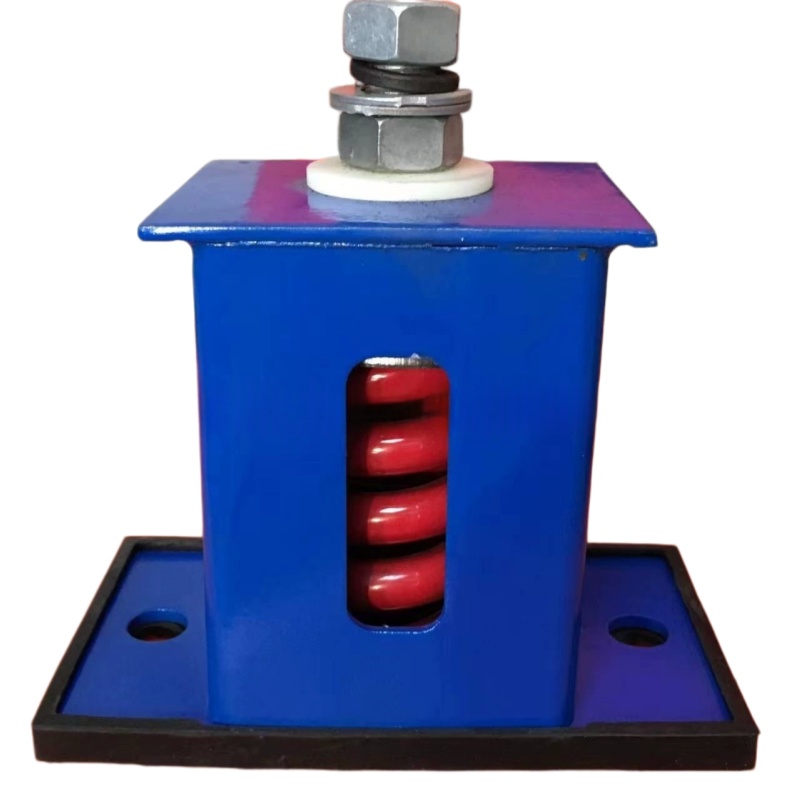

The JM1 Type Damping Spring Vibration Isolator is a sealed spring isolator designed to minimize vibration and noise from mechanical equipment such as HVAC units, pumps, and fans. It features a fixed, stable seat with a robust spring inside a protective enclosure.
Its compact and aesthetic design allows for easy installation while maintaining horizontal alignment of the equipment. Adjustable height and load-bearing capability ensure the equipment remains level and stable, improving operational safety and longevity.
Key Features
- Effective Vibration Damping Reduces vibration from pumps, fans, and air conditioning units
- Seat-Mounted Design Ensures stable equipment installation
- Adjustable Load & Height Can be customized to match specific equipment weight
- Compact and Aesthetic Neat appearance suitable for visible installations
- Durable Construction High-strength steel spring inside a protective metal casing
- Easy Installation Pre-drilled mounting base for quick and secure setup
Applications
- HVAC systems (Air Handling Units, Chillers, Fan Coils)
- Pumps (Water Pumps, Cooling Water Circulation Pumps)
- Ventilation Fans & Blowers
- Mechanical Equipment in Commercial and Industrial Buildings
- Equipment Rooms, Mechanical Rooms, and Data Centers
Technical Specifications (Typical – JM1 Series)
| Model | Load (kg) |
| JM1-10 | 10 |
| JM1-20 | 20 |
| JM1-30 | 30 |
| JM1-40 | 40 |
| JM1-50 | 50 |
| JM1-60 | 60 |
| JM1-70 | 70 |
| … | … |
| JM1-500 | 500 |
Load range: 10 – 500 kg. Custom sizes and load ratings available upon request.
